Blue Sea 50 Amp Ac/Dc Magnetic Circuit Breaker 7244 - MacombMarineParts.com

Blue Sea 50 Amp Ac/Dc Magnetic Circuit Breaker 7244

  • $48.94
    Unit price per

Only 31 left!

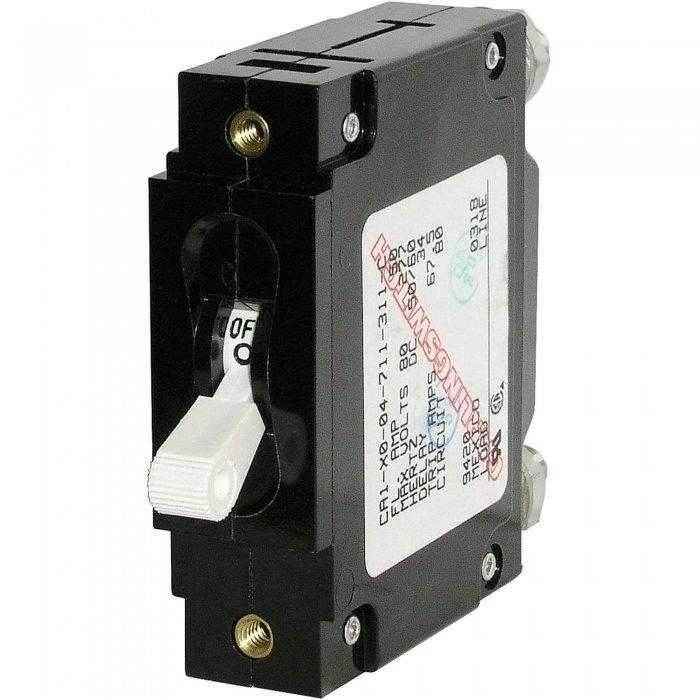

Blue Sea 50 Amp Ac/Dc Magnetic Circuit Breaker 7244


  • C-Series circuit breaker

  • 50 amps AC/DC rating

  • Single pole

  • White toggle handle

  • Combines switching and circuit protection into a single device

  • Magnetic hydraulic trip-free design cannot be held ON during fault current condition

  • Provides overcurrent protection for many DC applications including inverters, bow thrusters, and windlasses

  • Suitable for main circuit protection of DC electrical systems or 120/240 volt AC circuit protection

  • 80 volts DC maximum voltage

  • 240 volts AC maximum voltage

  • #6-32 mounting screws included

  • 1/4-20 tin plated brass terminal studs

  • 0.630 in. diameter panel hole size for toggle switch

  • 10,000 amps interrupt capacity @ 80 volts DC

  • 5000 amps interrupt capacity @ 125 volts AC

  • 5000 amps interrupt capacity @ 240 volts AC

  • Rated for 10,000 switching cycles @ rated amperage and voltage

  • .75 in. width x 2.5 in. height x 2.475 in. depth

  • Meets ABYC standards

  • UL 1077 recognized
