Blue Sea  Fuse Terminal 30 Amp 5175-macomb-marine-parts.myshopify.com

Blue Sea Fuse Terminal 30 Amp 5175

  • $16.64
    Unit price per

Only 16 left!

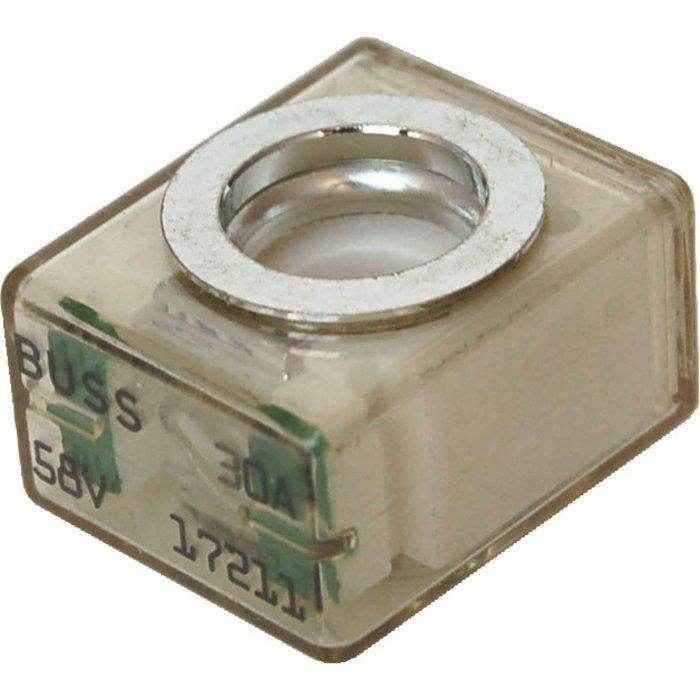

Blue Sea Systems Fuse Terminal 30 Amp 5175

Compact MRBF fuse works with Blue Sea System's 5191 or 2151 terminal fuse block.


  • 30 amp marine rated battery fuse

  • Requires the use of P/N 5191 or 2151 terminal fuse blocks

  • Do not mount fuse directly to the battery terminal without fuse block

  • Interrupt rating satisfies ABYC requirements for DC Main circuit protection of large battery banks

  • 10,000 amps @ 14 volts DC interrupt capacity

  • 5,000 amps @ 32 volts DC interrupt capacity

  • 2,000 amps @ 58 volts DC interrupt capacity

  • 58 volts DC maximum operating voltage

  • M8 (5/16 in.) fuse hole opening

  • SAE J1171 ignition protected – safe for use aboard gasoline powered boats

  • Viewing window allows for visible indication of blown fuse

  • Rated IP66 – able to withstand heavy seas
