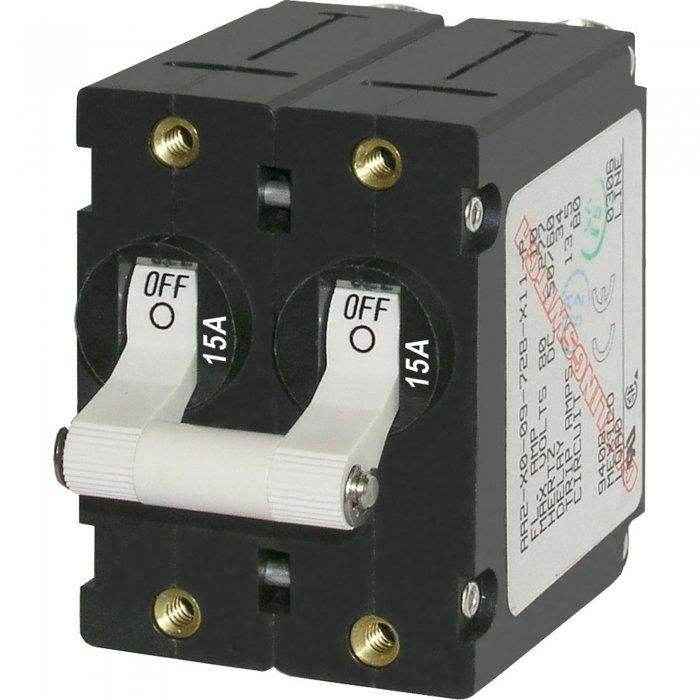

Blue Sea 15 Amp Ac/Dc Magnetic Circuit Breaker 7235

Blue Sea Systems 15 Amp Ac/Dc Magnetic Circuit Breaker 7235

A-Series Double Pole Circuit Breakers are commonly used for AC main circuit protection

•
  15 Amp AC/DC Magnetic Circuit Breaker
•
  Double pole
•
  White handle
•
  Standard breaker used with Blue Sea Systems electrical panels
•
  Combines switching and circuit protection into a single device
•
  Trip Free design cannot be held ON during fault current condition
•
  Max Amperage 50 Amps
•
  Max Voltage 65 Volts DC 277 Volts AC
•
  Circuit Breaker Type Magnetic Hydraulic - Trip Free
•
  Rated Switch Cycles 10 000 @ rated amperage and voltage
•
  Weight 0.34lb
•
  Mounting screw: #6-32
•
  Terminal screw: #10-32 SS w/external tooth lockwasher
•
  Meets all American Boat and Yacht Council (ABYC) Standards is UL 1077 Recognized TUV Certified CE marked for Europe and CSA Certified for Canada
