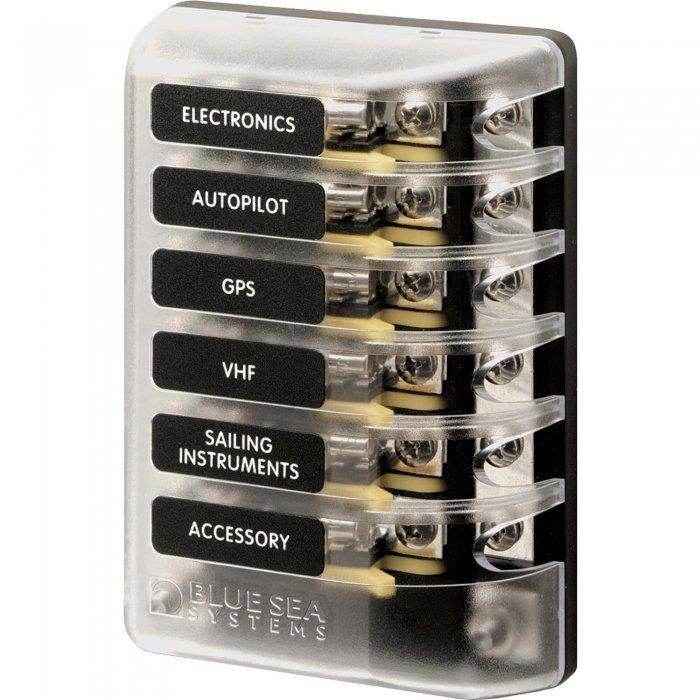

Blue Sea 6 Circuit 3Ag Glass Fuse Block 5015

Blue Sea Systems 6 Circuit 3Ag Glass Fuse Block With Negative Bus 5015

•
  ST Glass Fuse Block with 6 Circuits and Cover
•
  3AG Glass Fuse Block with Negative Bus
•
  Clear insulating cover with label recess for standard Blue Sea Systems labels
•
  Cover insulates all conductive parts satisfying ABYC/USCG requirements and storing spare fuses
•
  Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Amp rating per circuit
•
  Accepts AGC MDL and all other 3AG Glass Fuses
•
  Base Material: LEXAN Polycarbonate
•
  Cover Material: Polycarbonate
•
  Screw Terminal: 8-32 with Captive Star Lockwasher
•
  Maximum Voltage: 32 Volts DC
•
  Maximum Amperage per block: 100 Amps
•
  Maximum Amperage per circuit: 30 Amps
