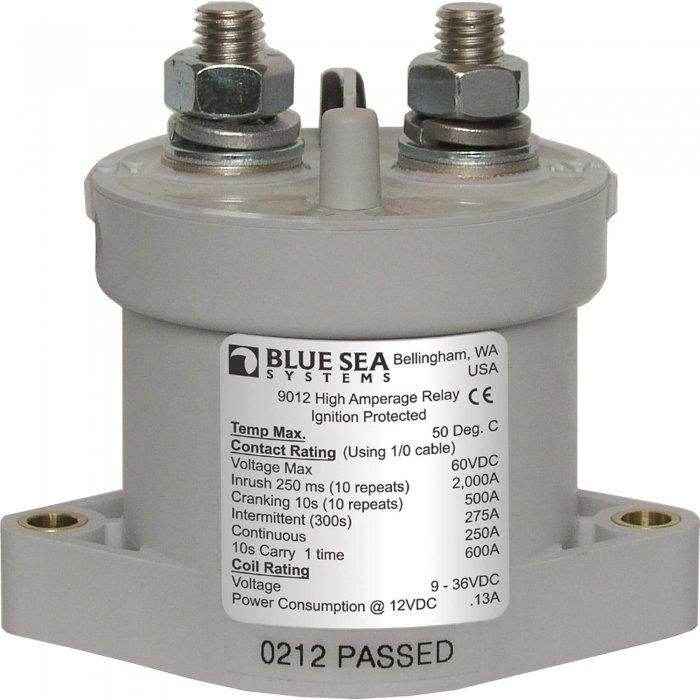

Blue Sea Solenoid Switch L-Series 12-24V 9012

Blue Sea Solenoid Switch L-Series 12-24V 9012

Remotely activated 250 amp solenoid switch is controlled by a low amperage switch & smaller gauge wire.

•
  Blue Sea L solenoid switch
•
  Activated by a remotely mounted low amperage ON-OFF switch
•
  Works for either 12 or 24 volt systems
•
  9V-36V DC input voltage
•
  Hermetically sealed vaporproof contacts
•
  Integrated coil control reduces heating and amperage draw
•
  Coil function is normally open
•
  450 amp class solenoid
•
  300 amp continuous contact rating
•
  1000 amp (30 second) cranking contact rating
•
  800 volt DC maximum voltage contact rating
•
  M8 terminal studs – accepts 5/16 in. terminals
•
  #10 (M5) mounting screws
•
  Rated IP67 – against dust ingression and water submersion for 30 minutes
•
  Meets SAE J1171 marine ignition protection requirements
•
  Meets UL 508 requirements
•
  CE certified
•
  Recommended ON-OFF switch P/N 8230 – sold separately
