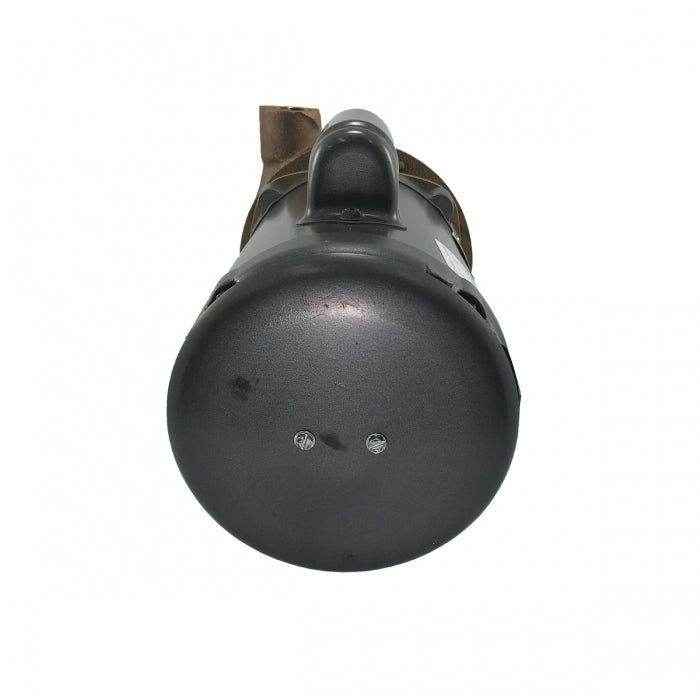

Centrifugal Pump 4200 GPH 115/230V | Oberdorfer OB109MB-J19

Oberdorfer Pumps

$1,661.59
Unit price per

Bronze 115/230 volt close coupled centrifugal pump is rated at 62.5 gpm at 10 feet of head and is used widely in marine air conditioning systems along with many other pumping applications. The special alloys used in the construction of this pump provide corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals.

Oberdorfer 109MB-J19 Bronze Close Coupled Centrifugal Sea Water Pump
All bronze housing with 416 stainless steel shaft
Long lasting carbon faced mechanical seal
Pump inlet is 1-1/4 inch Female NPT and the outlet is 1 inch Female NPT
Pump rating is 62.5 gpm at 10 feet of head (3750 GPH)
Pump rating is 55 gpm at 15 feet of head (3300 GPH)
115/230 Volt 50/60Hz single phase ODP motor
Factory wired for high voltage
A standard in the marine air conditioning industry
Designed to circulate sea water in marine air conditioning systems
Corrosion resistance to many liquids including water, water solutions, and a wide range of commercial chemicals
Must be installed below the water line so the liquid flows to the pump by gravity (flooded suction)
Repair kit p/n OB10721
