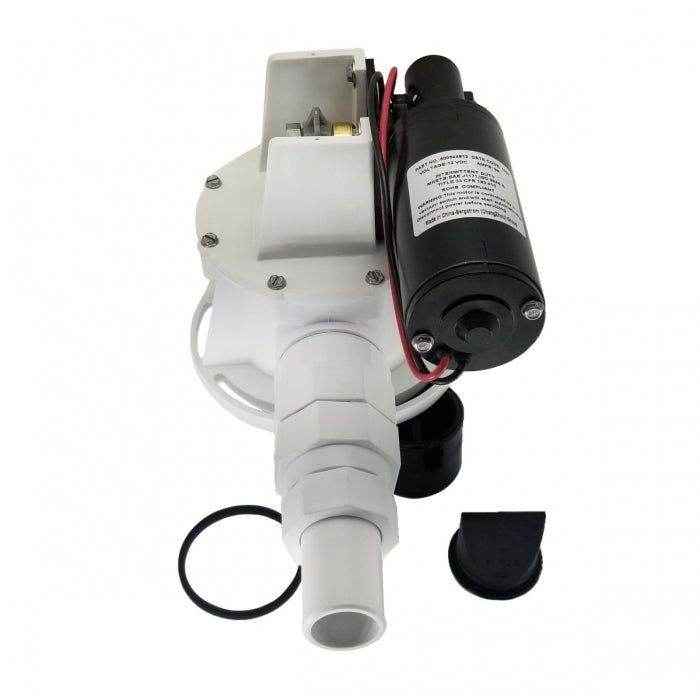

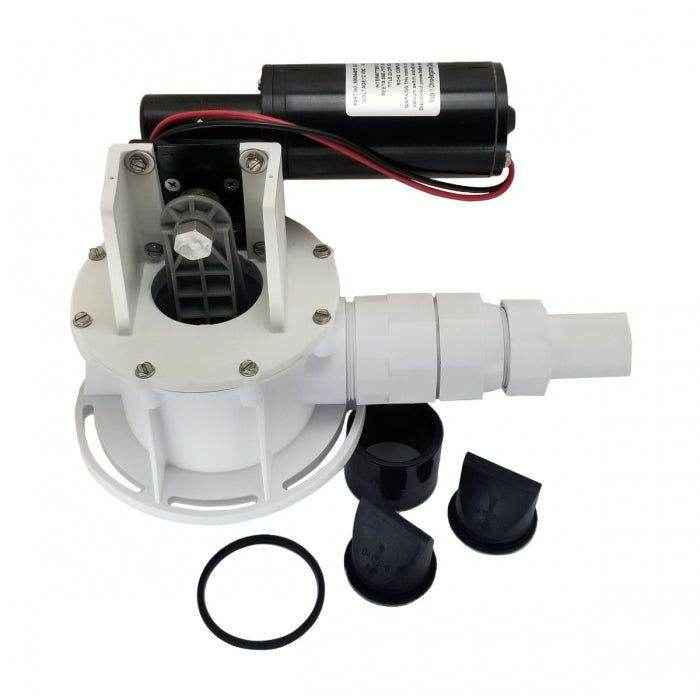

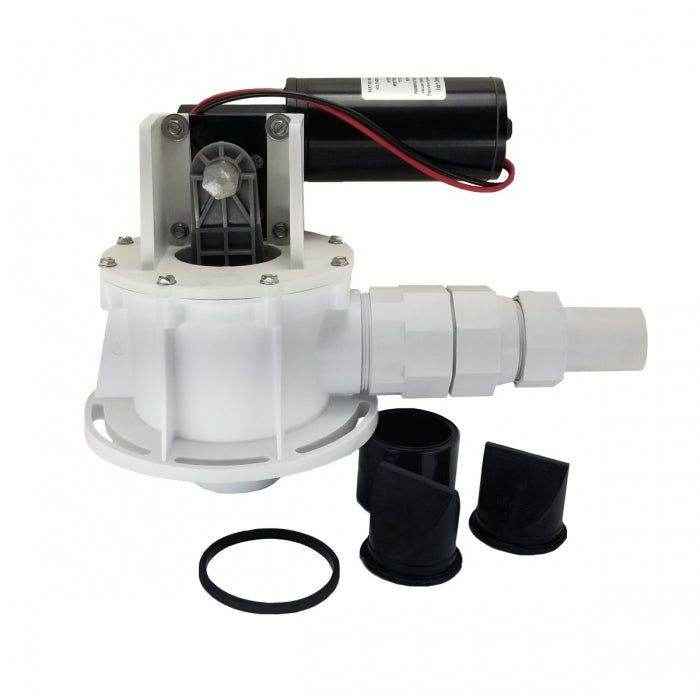

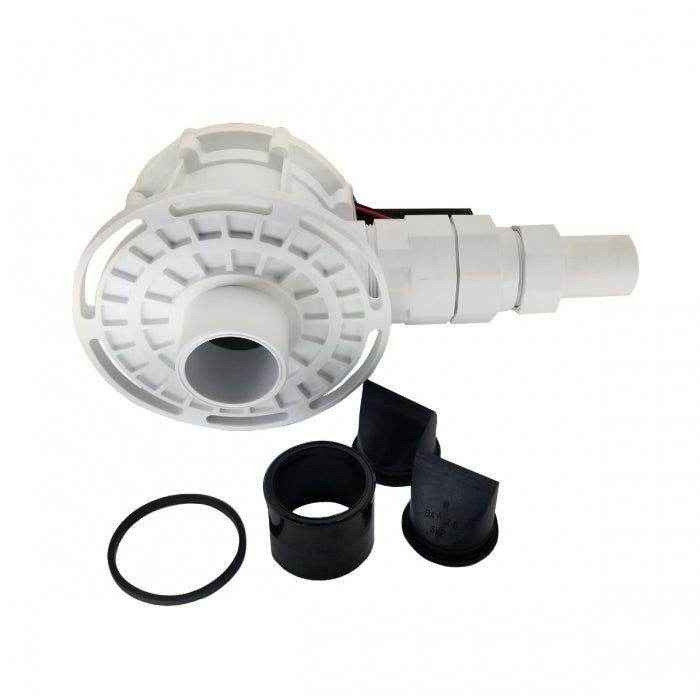

Vacuum Pump for VG4 Vacuum Generator, 24V | MMD Powerline 385311230
Replacement Vacuum Pump for VG4 Vacuum Generator, 24V | MMD Powerline 385311230

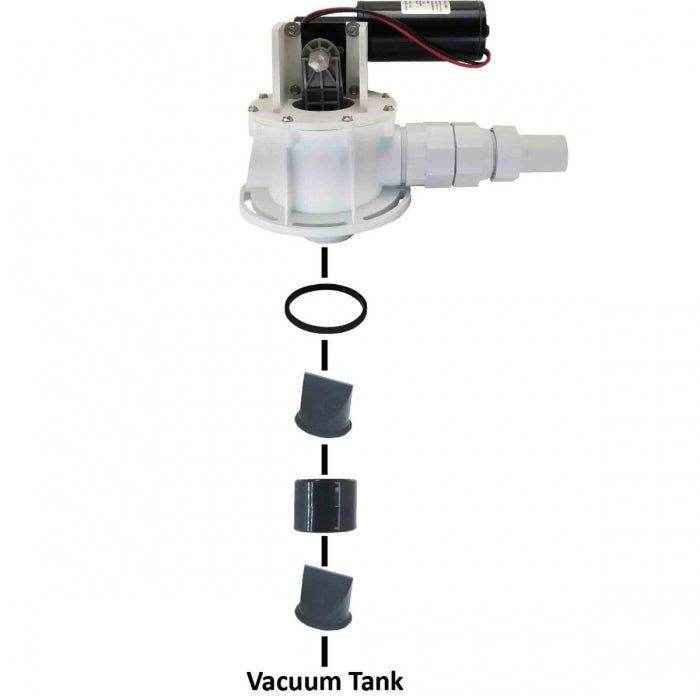

24 Volt JW Replacement Vacuum Pump for VacuFlush toilet systems which utilize a VG4 Vacuum Generator. Replacement pump mounts on top of solid white rectangular-shaped Vacuum Tank (VG4).
- Bellows style Vacuum Pump designed for use with Dometic VG4 Vacuum Generator
- Also referred to as J pump or JW pump
- 24 Volt DC Operation
- 10 Amp Fuse/Breaker Recommended
- Contains 4 Duckbill Valves which should be replaced every 3 years (385311581)
- Contains Pump to tank seal (385311213)
- Replacement Bellows Assembly: 385230980*
- Replacement Bellows Clamp: 385311226*
- Replacement O-Ring Kit: 385310151*
- 24 volt Replacement Motor Kit (*includes items above with asterisk): 385311424
- Replacement Vacuum Switch for VG4 Vacuum Generator: 385311216
- Runs dry without damage
- Discharge Port: 1-1/2 inch barb
- Inlet Port: 1-1/2 inch NPT
- WARNING: Pump starts automatically when wired to Vacuum Switch. Disconnect Power before servicing
