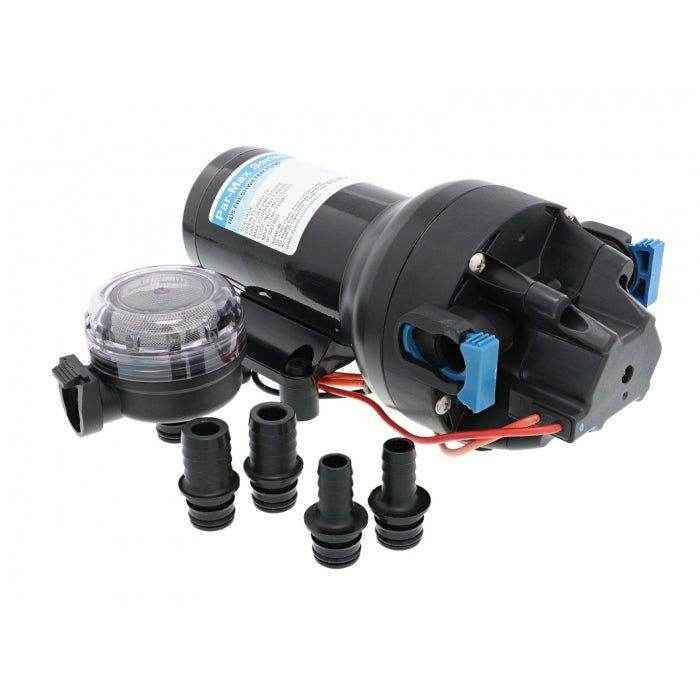

12V 5 GPM Par-Max HD5 Freshwater Pressure Pump | Jabsco P501J-115S-3A

12V 5 GPM Par-Max HD5 Freshwater Pressure Pump, 40 PSI | Jabsco P501J-115S-3A

This 40 PSI 12 volt Par-Max HD5 fresh water delivery pump features a heavy duty motor and cast aluminum lower housings which allow for long-life, even at high pressures. This pump also includes an integrated bypass module which reduces cycling and provides a smoother flow.

• Par-Max HD5 Freshwater Delivery Pump
• 12 Volt DC operation
• 5 Gallon Per Minute Open Flow Rate
• 40 PSI Shut-off pressure (2.8 BAR)
• 12 Max Current Amps
• 20 Amp Fuse Required
• Self-priming operation (7ft when dry)
• Runs dry without damage
• Includes a bypass module which reduces cycling and provides the user with an even flow
• two (2) 1/2 inch and two (2) 3/4 inch hose Barbs included (Quick Connect to Straight Hose Barb)
• 90 degree 40 Mesh Strainer Included
• Ignition Protected
• Certifications: CE, ISO8846, RCM
• IPX6 rated
• 9.6 In. Length x 5 In. Width x 4.7 inch Height
• 2 In. center to center mounting length
• 3.6 In. center to center mounting width
• Mounting feet with soft rubber mounts are designed to reduce and absorb noise
• See Product Attachment for additional details
