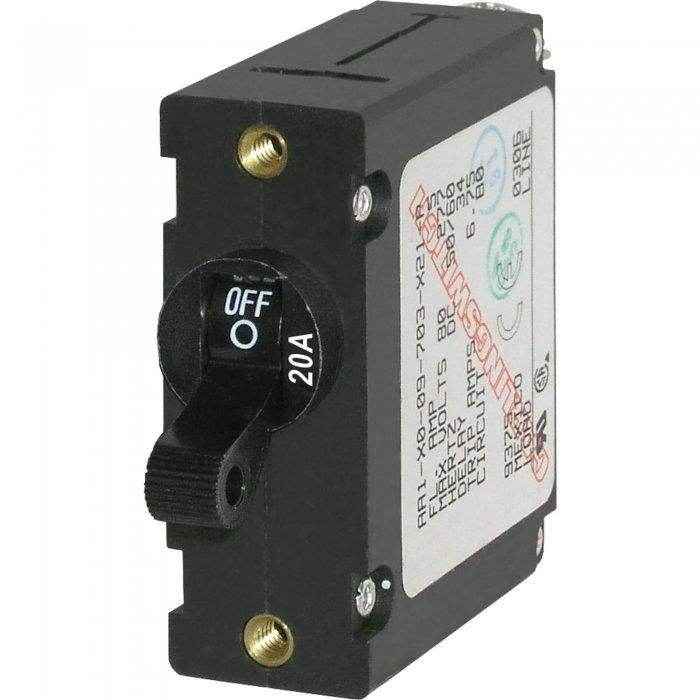

Blue Sea Systems 20 Amp Ac/Dc Magnetic Circuit Breaker 7212
Black handle single pole circuit breaker with screw terminal connections is used for DC or AC branch circuit protection.
- A-Series circuit breaker
- 20 amps AC/DC rating
- Single pole
- Black toggle handle
- Combines switching and circuit protection into a single device
- Magnetic hydraulic trip-free design cannot be held ON during fault current condition
- The standard circuit breaker in Blue Sea Systems electrical panels
- 65 volts DC maximum voltage
- 250 volts AC maximum voltage
- #6-32 mounting screws included
- #10-32 terminal screws
- 0.630 in. diameter panel hole size for toggle switch
- 7500 amps interrupt capacity @ 65 volts DC
- 3000 amps interrupt capacity @ 120 volts AC
- 3000 amps interrupt capacity @ 250 volts AC
- Rated for 10,000 switching cycles @ rated amperage and voltage
- .750 in. width x 2 in. height x 1.64 in. depth
- Meets ABYC standards
- CE marked / TUV certified / CSA certified / UL 1077 recognized
- Replaces Ancor 551520
