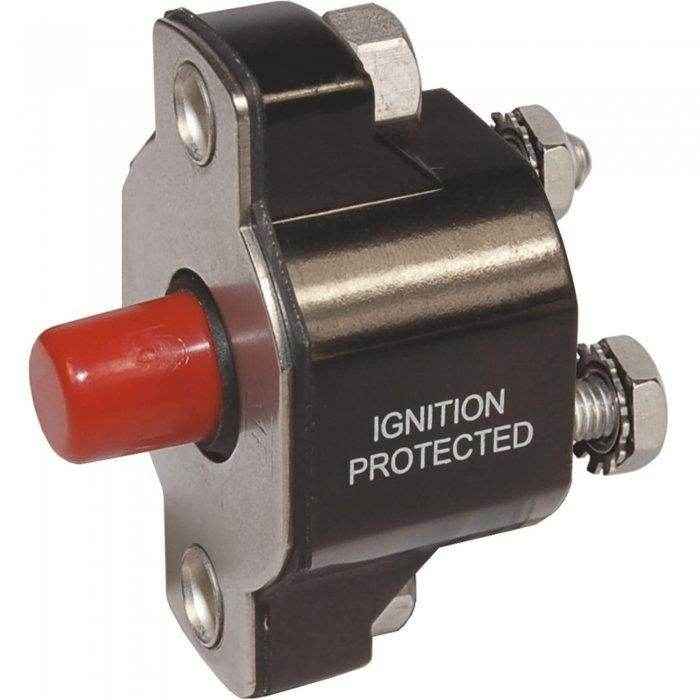

Blue Sea 20 Amp Push Button Circuit Breaker 2139

Blue Sea Systems 20 Amp Push Button Circuit Breaker 2139

•
  Blue Sea push button circuit breaker
•
  Reset-only circuit breaker with push-to-reset operation
•
  (2) #10-32 stainless steel terminal studs
•
  Captive star lockwashers meet requirements for anti-rotation and help eliminate the loss of small attaching hardware
•
  20 amp circuit breaker can be used for main, branch, or 24-hour circuit protection
•
  Trip Free feature cannot be held ON during fault current condition
•
  Compact design
•
  Thermal trip type
•
  5000A interrupt capacity @ 32 volts DC
•
  3000A interrupt capacity @ 120 volts AC
•
  32 volts DC maximum operating voltage
•
  120 volts AC maximum operating voltage
•
  #8-32 mounting screw thread size
•
  1.575 in. mounting screw bolt hole centers
•
  Meets SAE J1428, SAE J553, UL 1077 regulatory specifications
•
  Meets UL 1500 external ignition protection requirements
•
  Replaces Westerbeke 24683
