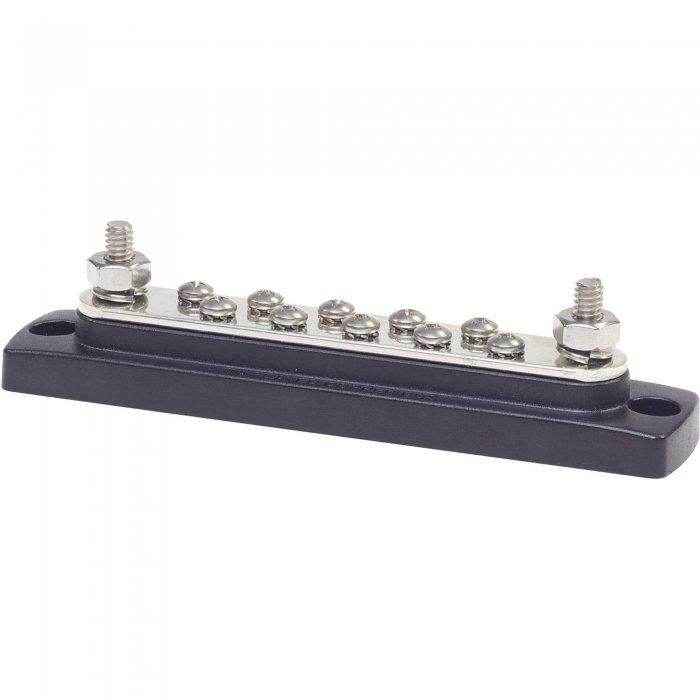

Blue Sea Busbar 10 X 8-32 Screw Terminal 2301
Blue Sea Systems Busbar 10 X 8-32 Screw Terminal 2301
10 gang AC/DC busbar is used for the distribution of positive wires or the collection of negative returns.
-
150 amp 10 gang common BusBar -
The industry standard busbar for positive distribution, collection of negative return wires, or AC ground circuits -
10 x #8-32 terminal screws -
2 x 1/4”-20 terminal studs -
130 amp AC continuous rating -
150 amp DC continuous rating -
300 volts AC maximum voltage -
48 volts DC maximum voltage -
Tin-plated copper CDA 110/UNS11000 bus material -
5.875 in. long -
5 1/4 in. mounting centers -
Accepts #10 (M5) mounting screws -
Reinforced polycarbonate base material -
CE certified
