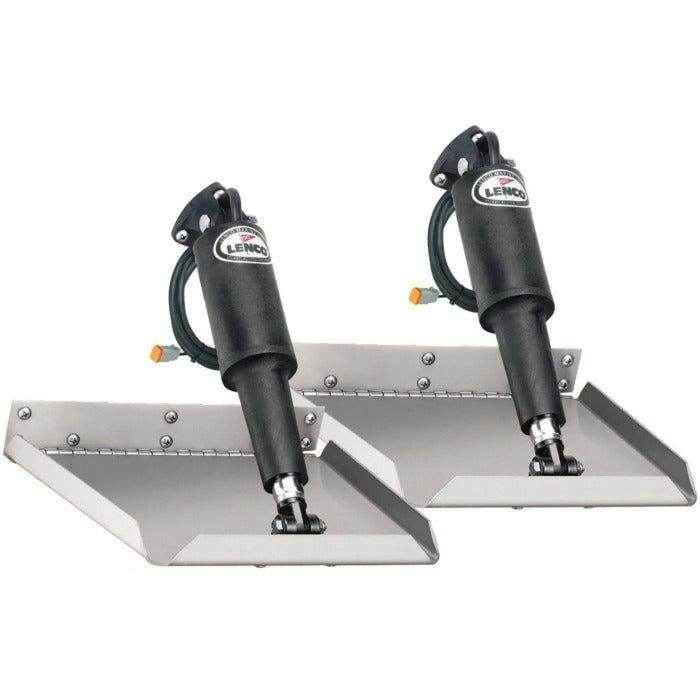

Lenco Edge Mount Trim Tab Kit without Switch - 12 inch x 12 inch | Lenco Marine 15016-101

Designed for boats between 17 ft. - 30 ft. in length, this kit includes one set of trim tab blades, actuators with 20-foot harnesses, mounting brackets, & mounting hardware.

• Lenco edge mount trim tab kit
• Does not include trim tab control/switch panel – sold separately
• Kit contains (2) 12-gauge 12 in. by 12 in. trim tab blades, (2) 15054-001 12V actuators with 6 ft. leads & Deutsch connectors, (2) 30133-103 20 ft. actuator extension wiring harnesses, (2) 15085-001 upper mounting brackets with gland seal, (2) #50014-001 lower mounting brackets & all necessary stainless steel mounting hardware
• For 17 ft. to 30 ft. length boat applications where a lower actuator mounting height is necessary or desirable
• Actuator mounts on the trailing edge of the blade giving it a 3 in. lower mounting height
• Standard finish 304 stainless steel blades
• Tab blades are laser cut with 1 in. turned up edges for added strength and a 5 degree taper on both sides of the trailing edge
• Features high impact corrosion proof mounting brackets with mechanical cable gland seal
• 11 in. minimum required transom height
• 1/8 in. diameter stainless steel hinge pin
• 3 year warranty
