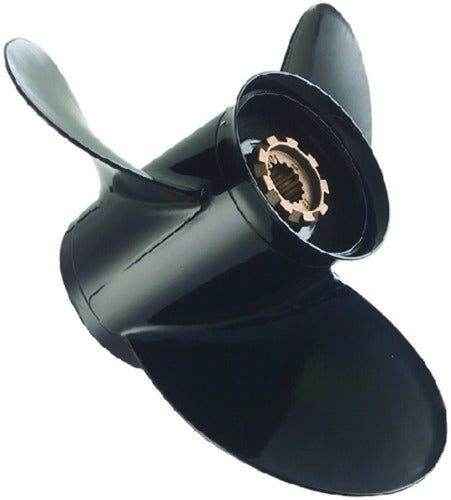

14 X 13 Black Diamond 3 Blade RH Propeller | Quicksilver QA3832X
For good overall performance and value, the QuickSilver Black Diamond is your prop. While QuickSilver Black Diamond aluminum propellers are standard equipment on most boats with Mercury/Mariner/MerCruiser power, they are a perfect replacement for all engine brands through the use of the Quicksilver Flo Torq II hub system. The QuickSilver Black Diamond is recommended for use on boats with up to 250 Hp and with a top speed of less than 50MPH. The high quality casting and durable high-gloss Phantom Black finish make it easy to maintain & repair.
House/Cruisers
Engine Application
Evinrude/Johnson® 45-75 Horsepower Large Gearcase
45 hp (2 Cyl. Commercial)…1986 & newer;
50 hp (2 Cyl.)…1971-74;
50 hp (2 Cyl. Commercial)…1977-79;
50 hp (3 Cyl.)…1994-99;
55 hp (3 Cyl.)…1968-69;
55 hp (2 Cyl. Commercial)…1980 & newer;
60 hp (3 Cyl.)…1970-71, 1986 & newer;
65 hp (3 Cyl.)…1972-73;
65 hp (3 Cyl. Commercial)…1984 & newer;
70 hp (3&4 Cyl. including 4-Stroke)…1974 & newer;
75 hp (3 Cyl.)…1975-84
Attaching Hardware:H25
Evinrude/Johnson® 85-140 Horsepower V-4 Outboard
85 hp (V-4)…1969-80;
85 hp (V-4)…1991-95;
88 hp (V4)…1981-96;
90 hp (V4)…1981 & newer;
100 hp (V-4)…1979-80;
100 hp (V-4)…1988-93;
110 hp (V-4)…1986-89;
112 hp (V-4)…1994-96;
115 hp (V-4)…1973 & newer;
120 hp (V-4)…1986-94;
125 hp (V-4)…1971-72;
135 hp (V-4)…1973-76;
140 hp (V-4)…1977-84
Attaching Hardware:H25
Suzuki 60-70 Horsepower 4-Stroke, 75-140 Hp 2-Stroke
DF 60…1998 & newer;
DF 70 hp…1998-2008;
DT 75 hp…1992-97;
DT 75 hp…1983-91;
DT 85 hp…1992-2000;
DT 85 hp…1979-91;
DT 90 hp…1989-97;
DT 100 hp…1989 & newer;
DT115, 140 hp…1992 & newer;
DT 115;
140 hp…1981-91
Model 400 And Cobra Omc
2.3L 120-128 hp…1978-90;
2.5L 120 hp…1978-89;
3.0L 130-140 hp…1978-89
Attaching Hardware:H76
Sea Drive 41/4” Gearcase Omc
1.6L V-4…1983 & newer;
1.8L V-4…1983 & newer Note: Add 2” of pitch for twin engines
Attaching Hardware:H76
Attaching Hardware
H25
Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
H76
Cotter pin:
Sierra: 18-3742
Cotter pin (100/box):
Other: 354622
Nut:
Sierra: 18-3705
Quicksilver: 859929
Spacer, nut, & pin kit:
Sierra: 18-3716
Quicksilver: 802010Q1
Splined spacer (aft):
Sierra: 18-4228
Quicksilver: 859892
Thrust washer (forward):
Sierra: 18-4222
Quicksilver: 859915
Michigan Wheel: 991210
This product replaces:
710-QA3832X, 745061744011
