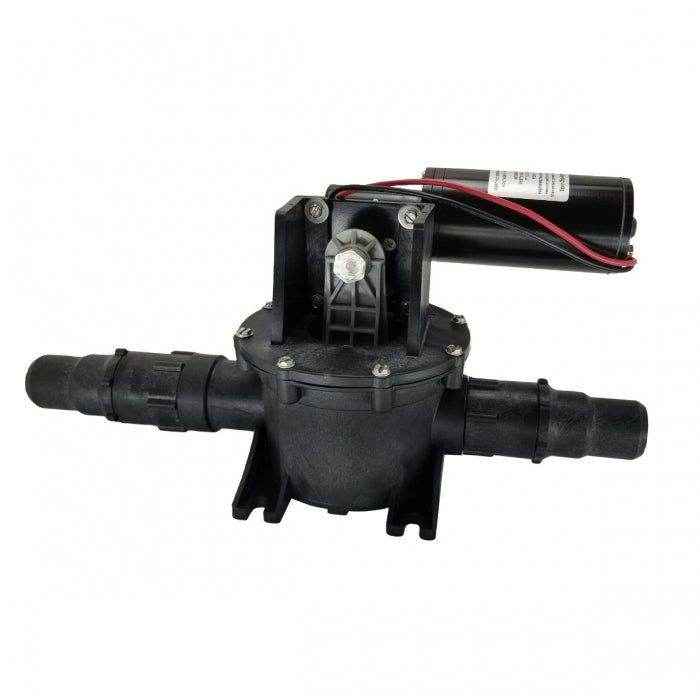

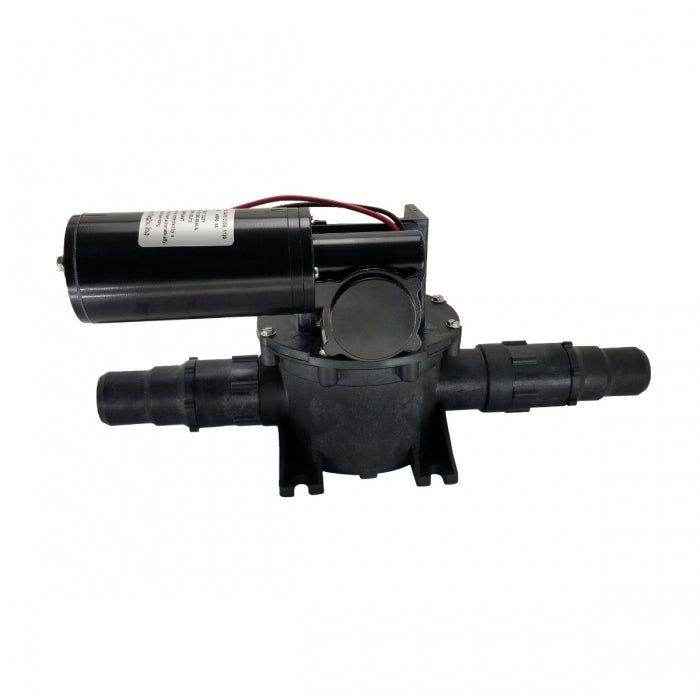

SW Vacuum Pump for VT Vacuum Tank, 12V | MMD Powerline 317201200
Replacement SW Vacuum Pump for VT Vacuum Tank, 12V | MMD Powerline 317201200
12V Replacement Vacuum Pump for VacuFlush toilet systems which utilize a Dometic VT Vacuum Tank. Pump does not include dust cover.
- Bellows style Vacuum Pump designed for use with Dometic Model VT Vacuum Tank
- 12 volt DC operation
- Low 6 amp DC draw
- 10 amp fuse/breaker required
- Bellows-style vacuum “S” series pump
- Preserves water with low-flow flushes using as little as 1 pint of water
- Connects to Dometic model VT separate vacuum tank
- Contains 4 Duckbill Valves which should be replaced every 3 years (385310076 - qty 2 required)
- Replacement Bellows Assembly: 385230980*
- Replacement Bellows Clamp: 385311226*
- Replacement O-Ring Kit: 385310151*
- 12 volt Replacement Motor Kit (*includes items above with asterisk): 385311423
- Runs dry without damage
- Inlet Port: 1-1/2 inch barb
- Outlet Port: 1-1/2 inch barb
- WARNING: Pump starts automatically when wired to Vacuum Switch. Disconnect Power before servicing
