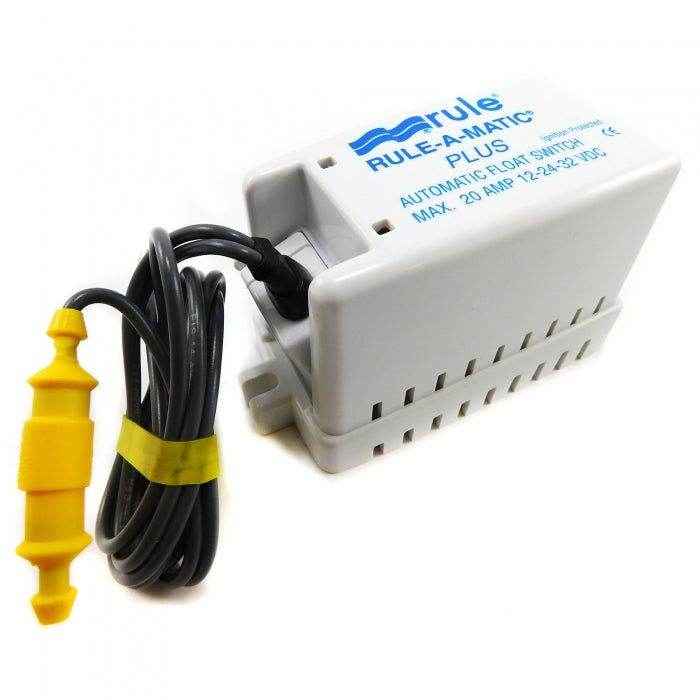

Rule-A-Matic Plus Float Switch With Fuse Holder | Rule 40FA

Rule-A-Matic Plus Float Switch With Fuse Holder | Rule 40FA

Float switch works with non-automatic bilge pumps to activate pump when bilge water level reaches 2 in. & shuts pump off when water level reaches 3/4 in.

• Rule 40FA Rule-A-Matic Plus float switch
• Automatic on/off control switch for 12, 24, or 32 volt DC electric bilge pumps or alarms
• Removable base for easy installation and cleaning
• Impact resistant cover keeps debris out preventing float from jamming
• Environmentally responsible mercury free design
• Features 28 in. abrasion resistant 14 AWG marine grade blocked wire
• Mounting screw provision in base
• For use with bilge pumps drawing up to 20 amps
• 20 amps maximum rating @ 12 volts DC
• 10 amps maximum rating @ 24 volts DC
• 6.5 amps maximum rating @ 32 volts DC
• Includes fuse holder
• Requires appropriate size fuse for the bilge pump
• ISO 8846 marine ignition protected
• 4 7/8 in. length
• 2 1/2 in. width
• 2 3/4 in. height
• 2 year manufacturer warranty
• Replaces Rule 40F
