Xtreme No Feedback Steering Kit 14Ft | SeaStar SSX17614
No FeedBack steering kits with Xtreme steering cable includes everything needed to replace the steering of single-station boats with a single non-power assisted outboard engine (up to V6).
SeaStar Xtreme No Feedback Steering Kit 14Ft | SSX17614
- Xtreme No FeedBack rotary steering system

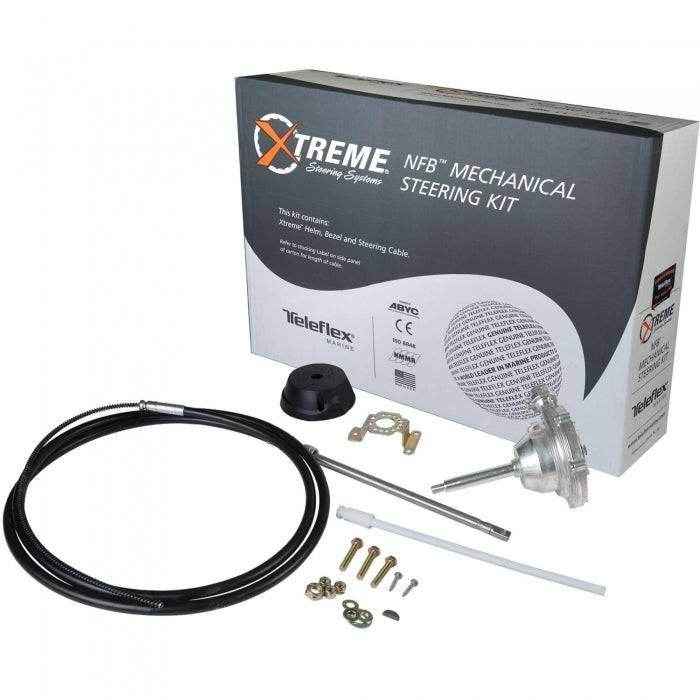

- Complete kit includes rotary NFB helm, 90-degree bezel kit, SSCX64 Xtreme steering cable (specify length), and hardware
- For single station boats with a single non-power assisted outboard engine up to V6
- High-efficiency Xtreme cables feature a unique core that provides better cable flexibility and longer life expectancy than standard cables
- Offers the smoothest mechanical steering system available and requires minimal steering effort
- Exclusive No FeedBack steering mechanism is built into the helm to alleviate prop torque feedback by locking out steering loads
- Quick connect helm and cable features make for a quick and simple installation
- Drop-in replacement for nearly all Safe-T rotary steering systems without any dash modifications
- Standard 3/4 in. tapered steering shaft
- Accepts steering wheels up to 16" in diameter
- Kit does not include steering wheel – sold separately
- Stainless steel cable ends
- Corrosion-resistant design to withstand the marine environment
- High-density polyethylene outer cable jacket resists abrasion and water intrusion
- Not for use with power-assisted steering
What Does No Feedback Mean?
Propeller rotation generates a load on the outboard engine in the direction of its rotation -- The boat is propelled forward causing the load to be fed back to the Helm resulting in a turn to the starboard direction. This prop torque makes it harder to steer a boat safely.
No Feedback is a SeaStar Solutions feature built into the helm which locks out steering loads caused by propeller torque thus:
- Minimizing the Effects of the Feedback
- Minimizing the Effort on the Operator to Steer the Boat
