Standard Performance Electro-Polish Trim Tab Kit without Switch, 12V - 14 inch x 12 inch | Lenco Marine 15038-101
Lenco Standard Performance Electro-Polish Trim Tab Kit without Switch, 12V - 14 inch x 12 inch | Lenco Marine 15038-101
Lenco's first series was designed specifically for performance. This system comes equipped with a thicker reinforced hinge and is complimented with an Electro-Polished finish for added quality and protection. Used with boat lengths from 13 ft. (4 m) to 40 ft. (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1 in. (2.5 cm) turned up edges and a 5-degree taper on the inside, heavy-duty hinge with 1/4 in. (6.4 mm) diameter hinge pin.
- Standard Trim Tab Kit 12V, 14 by 12 in.
- 12 gauge blades in 304 stainless steel with 1 in. turned up edges
- Hinges are 2 in. high with a 1/4 in. diameter hinge pin
- Standard actuators with 5/16 in. stainless steel bolts
- Actuators mount at the trailing edge of the blades
- Kit contains:

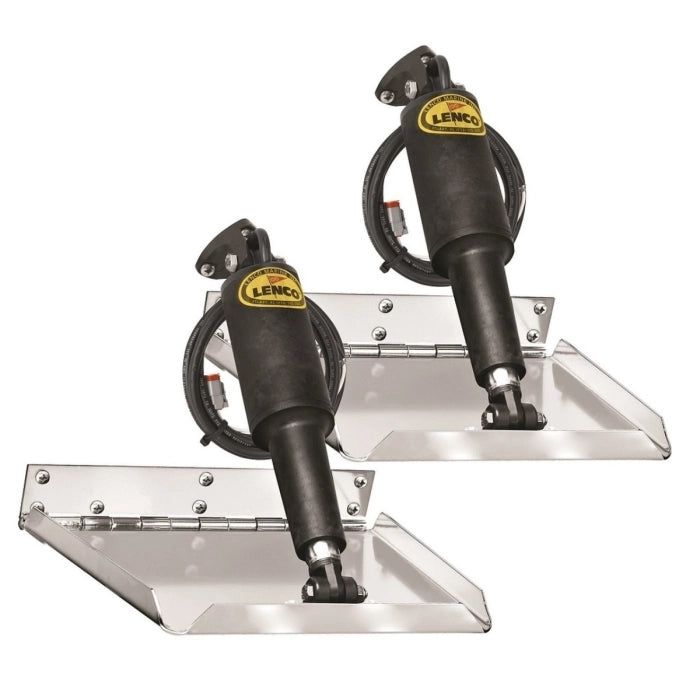

- Two 12 gauge stainless steel Electro-Polished trim tab blades
- Two #15054-001 actuators with 6 ft. lead and Deutsch plugs
- Two #30133-103 20 ft. actuator extension wiring harnesses
- Two #15085-001(#116)upper mounting bracket with gland seal
- Two #50014-001 (#119) lower mounting bracket
- Installation manual
- Stainless steel mounting hardware
