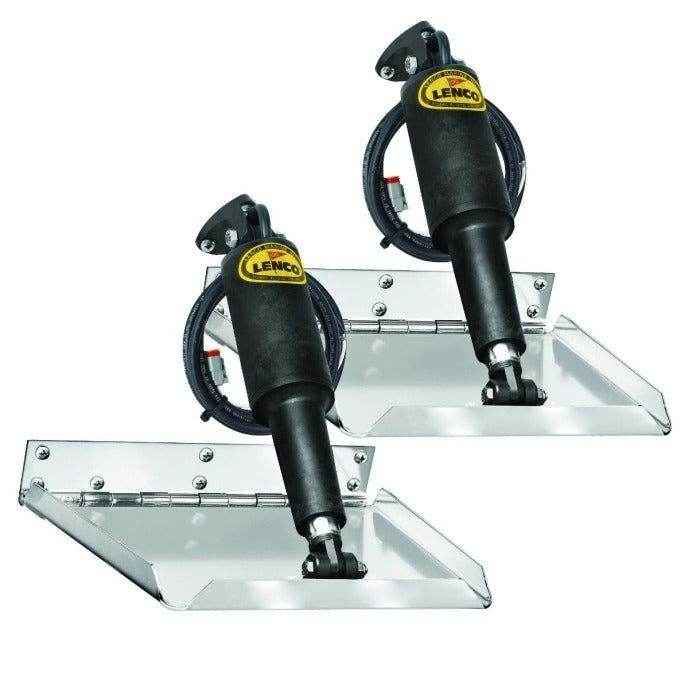

Lenco Standard Performance Electro-Polish Trim Tab Kit without Switch, 12V - 18 inch x 14 inch | Lenco Marine 15040-101

Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1 in. (2.5 cm) turned up edges and a 5-degree taper on the inside, heavy-duty hinge with 1/4 in. (6.4 mm) diameter hinge pin.

• Electro-Polished Standard Performance Trim Tab Kit - 18 in. x 14 in.
• 12 gauge blades in 304 stainless steel with 1 in. turned up edges with 85 degree inside taper
• Hinges are 2 in. high with a 1/4 in. diameter hinge pin
• Standard actuators with 5/16 in. stainless steel bolts
• Minimum Transom Height: 11 in. (27.9 cm)
• Boat lengths from 22 ft. to 40 ft.
• Actuators mount at the trailing edge of the blades
• Kit contains:
• Two 12 gauge stainless steel Electro-Polished trim tab blades
• Two #15054-001 actuators with 6 ft. lead and Deutsch plugs
• Two #30133-103 20 ft. actuator extension wiring harnesses
• Two #15085-001(#116)upper mounting bracket with gland seal
• Two #50014-001 (#119) lower mounting bracket
• Installation manual
• Stainless steel mounting hardware
