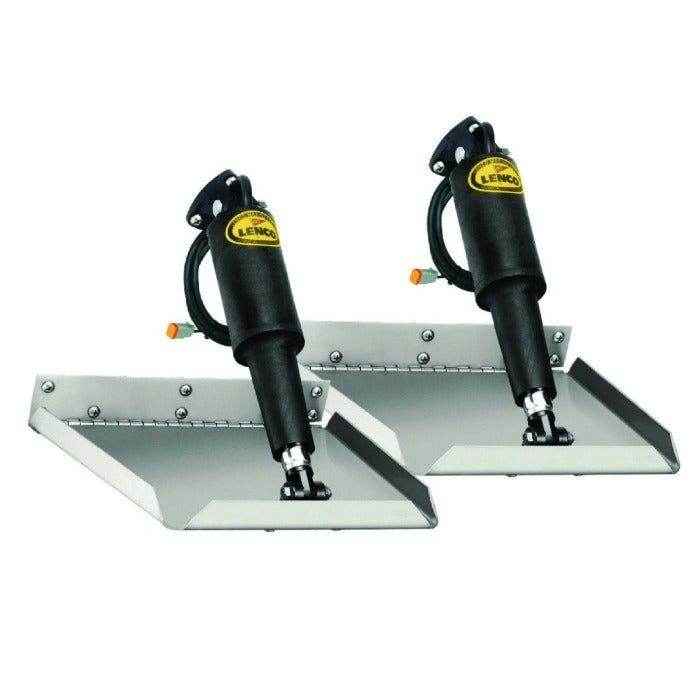

Lenco Edge Mount Trim Tab Kit without Switch - 9 inch x 12 inch | Lenco Marine 15014-101

Designed for boats between 14 ft. - 36 ft. in length, this kit includes one set of trim tab blades, actuators with 20-ft. harnesses, mounting brackets & mounting hardware.

• Edge Mount Trim Tab Kit without Switch - 9 in. x 12 in.
• 12V
• Blades are 12 gauge, 304 stainless steel with 1 in. turned up edges, 85 degree inside taper, and the hinges are 2 in. high with 1/8 in. diameter hinge pin
• Standard actuators with 5/16 in. stainless steel bolts
• Actuators mount at the trailing edge of the blades, requiring 1/2 in. less transom height than the standard mount tabs which use approximately 14 in. transom height on the 9 by 9 in. and 9 by 12 in. versions
• The 3 12 in. versions require 3 in. less transom height
• Kit contains:
• Two trim tab blades
• Two #15054-001 actuator with 6 ft. leads and Deutsch plugs
• Two #30133-103 20 ft. actuator extension wiring harnesses
• Two #15085-001 (116) upper mounting brackets with gland seal
• Two #50014-001 (119) lower mounting brackets
• Owner's manual
• Mounting hardware
