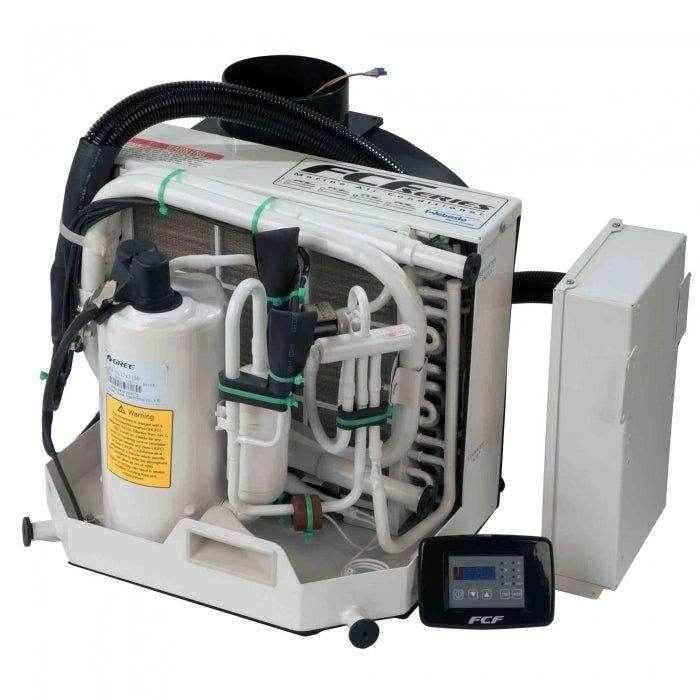

WEBASTO 12000 BTU FCF Air Conditioning Unit FCF0012000GS

• FCF Classic Series Self-Contained Air Conditioner with Reverse Cycle Heat
• 12,000 BTU/hr Cooling Capacity
• 13,000 BTU/hr Heating Capacity
• 115V Operation at 60Hz
• Suggested Breaker 20A
• Rated Current 11A
• Starting Current 45A
• Comp. LRA 47A
• Duct Ring 5 in.
• Rotatable Blower
• Return Air Grille must be a minimum of 100 sq. in.
• Minimum Seawater flow at the AC unit is 3.96GPM
• 1000GPH Continuous Duty Pump Suggested(sold separately)
• Seawater Inlet/Outlet .75 in. O.D.
• Drain Pan Outlet .625 in. O.D.
• Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately)
• AC unit dimensions(per manual*): 13 in.High(H*) X 15 in.Wide(P*) X 17.3 in.Deep(L*)
• Electric Box dimensions(per manual) : 11.42 in. X 7.88 in. 2.95 in.
• R410A Refrigerant
• Quiet operation with more power than other self-contained A/C systems on the market today
• Compressor has been carefully mounted to greatly reduce unwanted vibration and noises
• Epoxy painted stainless drain pan
• Digital display with control panel, cable, and wireless remote are included
• Backed by a limited 2-year warranty on parts and labor
