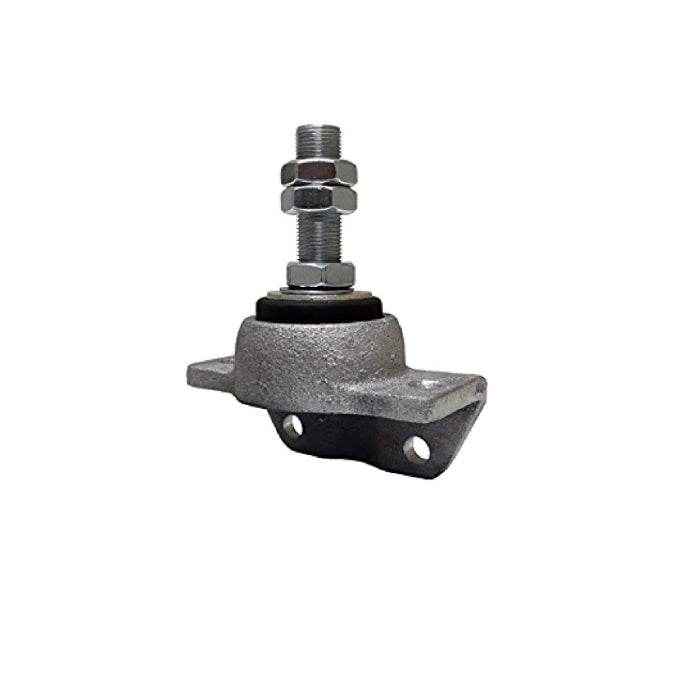

5/8 inch Stud Rubber Cushion Engine Mount | Barr 8-0004
Cast aluminum base mount with a single rubber cushion is designed for mounting marine engines or transmissions.
5/8 inch Stud Rubber Cushion Engine Mount | Barr 8-0004
- Barr rubber engine mount
- 5/8"-18UNF stud size
- 5 in. base length
- 1 3/4 in. base width
- 4 1/2 in. overall height from base to top of stud
- 4 in. length from bolt hole center to bolt hole center
- 7/16 in. hold down bolt size
- Adjustable both vertically and horizontally to assist with alignment
- 350 lbs. capacity per mount
- Rubber cushions are locked to the base
- Rubber is oil and fuel resistant
