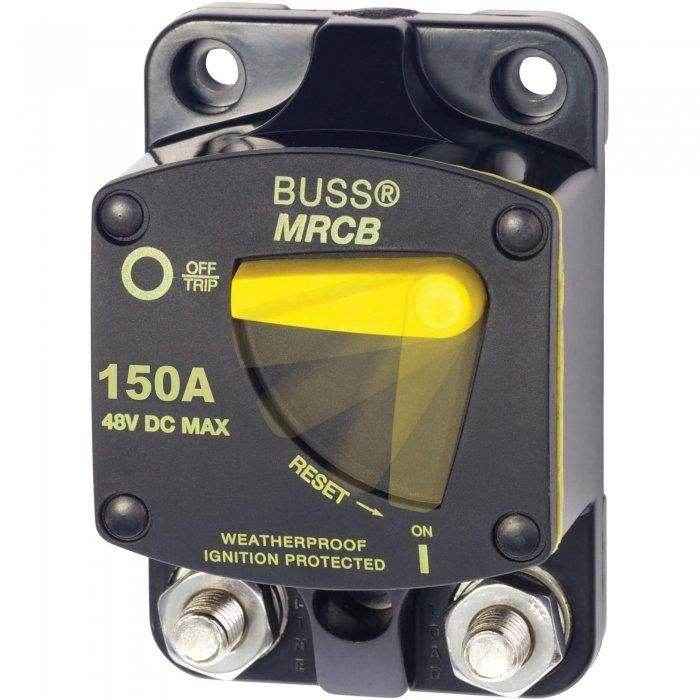

Blue Sea 187 Series 150 Amp Thermal Circuit Breaker 7148

Blue Sea Systems 187 Series 150 Amp Thermal Circuit Breaker 7148

Surface mount thermal circuit breaker combines switching & circuit protection into one device.

•
  Blue Sea 187 series surface mount circuit breaker
•
  150 amps DC rating
•
  Bright yellow reset lever for visual identification of open circuit
•
  Ideal for main circuit protection of large size battery banks
•
  Combines switching and circuit protection into a single device
•
  Trip-free design cannot be held ON during fault current condition
•
  Not to be used where high inrush currents are expected
•
  Type III class – switchable/manual reset
•
  48 volts DC maximum voltage
•
  5000 amps interrupt capacity @ 12 volts DC
•
  3000 amps interrupt capacity @ 24 volts DC
•
  1500 amps interrupt capacity @ 42 volts DC
•
  5/16”-18 terminal studs accepts up to 1/0 AWG heavy duty wire
•
  Waterproof for use in areas that may experience water spray
•
  Recessed mounting holes for clean appearance
•
  #10 (M5) mounting screw size
•
  2.323 in. width x 3.439 in. height x 1.797 in. depth
•
  SAE J1171 ignition protected – safe for installation aboard gasoline powered boats
•
  CE marked
•
  IP66 – protected against ingress of dust and water from heavy seas
