Blue Sea 20 Amp Ac/Dc Magnetic Circuit Breaker 7260

  • $46.84
    Unit price per
  • Save $6.39

Only 8 left!

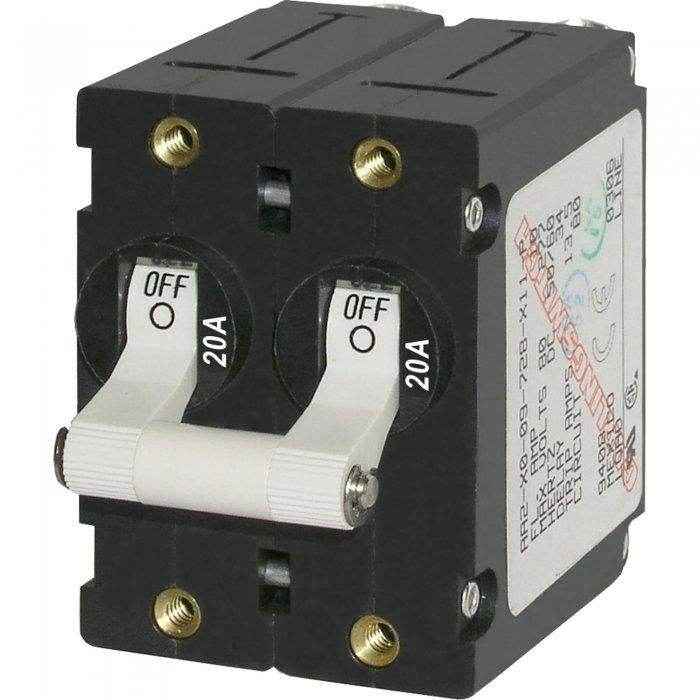

Blue Sea Systems 20 Amp Ac/Dc Magnetic Circuit Breaker 7260

A-Series White Toggle Circuit Breaker - Double Pole 20A


  • 20 amp A-Series Toggle Double Pole White Circuit Breaker

  • Double pole

  • White handle

  • The industry standard circuit breaker for Blue Sea Systems electrical panels

  • Combines switching and circuit protection into a single device

  • Trip Free design cannot be held ON during fault current condition

  • Max Amperage 50 Amps

  • Max Voltage 65 Volts DC 277 Volts AC

  • Circuit Breaker Type Magnetic Hydraulic - Trip Free

  • Rated Switch Cycles 10 000 @ rated amperage and voltage

  • Weight 0.34lb

  • Mounting screw: #6-32

  • Terminal screw: #10-32 SS w/external tooth lockwasher

  • Replaces Ancor 552820

  • Meets all American Boat and Yacht Council (ABYC) Standards is UL 1077 Recognized TUV Certified CE marked for Europe and CSA Certified for Canada
