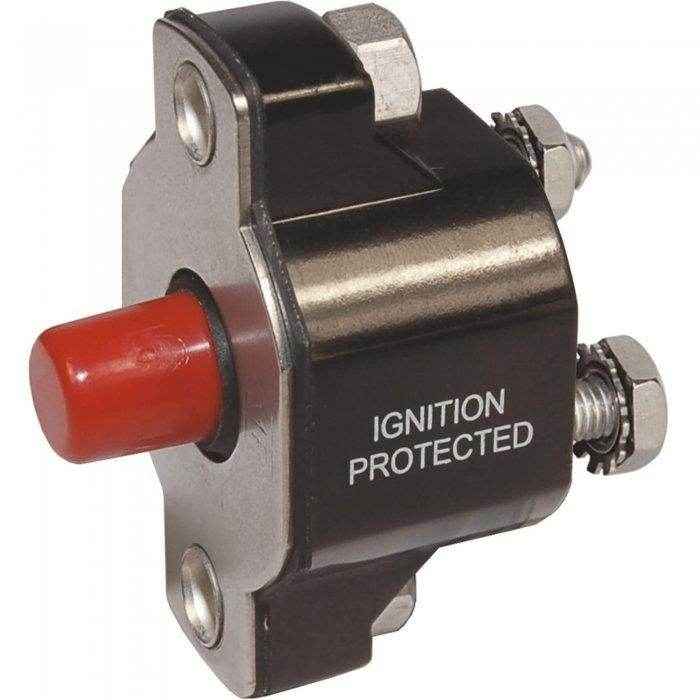

50 Amp Medium Duty Push Button Circuit Breaker | Blue Sea 2142

Blue Sea Systems

$54.77
Unit price per

50 Amp Medium Duty Push Button Circuit Breaker | Blue Sea 2142
Blue Sea Systems 50 Amp Push Button Thermal Circuit Breaker 2142

Reset-only 50A circuit breaker, found on many marine engines, is used for DC & AC circuit protection applications that do not require switching.

Blue Sea push button circuit breaker
Reset-only circuit breaker with push-to-reset operation
(2) #10-32 stainless steel terminal studs
Captive star lockwashers meet requirements for anti-rotation and help eliminate the loss of small attaching hardware
50 amp circuit breaker can be used for main, branch, or 24-hour circuit protection
Trip Free feature cannot be held ON during fault current condition
Compact design
Thermal trip type
5000A interrupt capacity @ 32 volts DC
3000A interrupt capacity @ 120 volts AC
32 volts DC maximum operating voltage
120 volts AC maximum operating voltage
#8-32 mounting screw thread size
1.575 in. mounting screw bolt hole centers
Meets SAE J1428, SAE J553, UL 1077 regulatory specifications
Meets UL 1500 external ignition protection requirements
Replaces Chrysler 4142032
Replaces Crusader R303006B
Replaces Pleasurecraft Marine R153006B
Replaces Indmar 80-5011
Replaces Mercury 88-11178A01
Replaces Marine Power 485006
Replaces Volvo Penta 3854164
