Blue Sea 6 Position Water Resistant Breaker Panel 8373

Blue Sea 6 Position Water Resistant Circuit Breaker Panel 8373

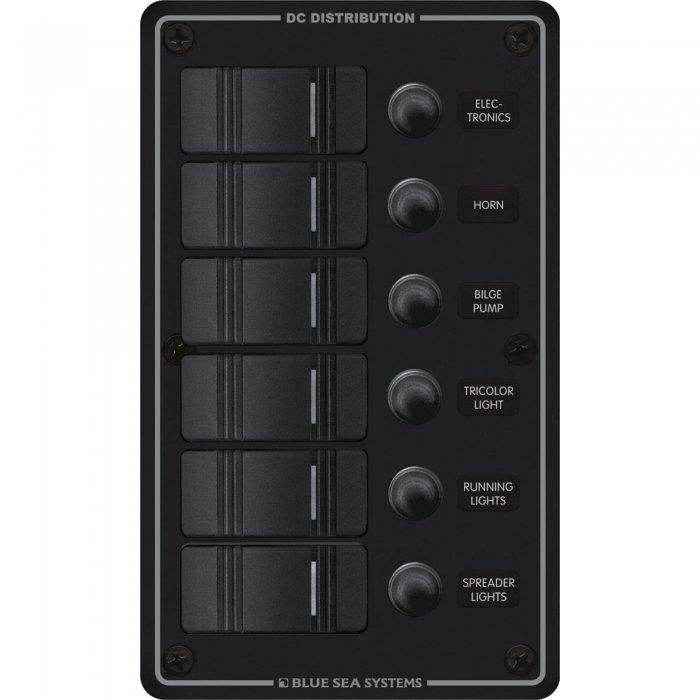

Black circuit breaker panel with Contura rocker switches is ideal for flybridge or open cockpit applications that may be exposed to water spray & heavy rain.

•
  Contura switch DC circuit breaker panel
•
  Vertical mounting orientation
•
  Can be used in both above and below deck applications
•
  Water resistant to IP66 standard
•
  Watertight mounting gasket
•
  Completely wired and ready to install
•
  6 push button circuit breakers with waterproof boots
•
  6 water resistant ON-OFF Contura switches
•
  Heavy 1/8 in. aluminum panel material
•
  Two-part polyurethane black finish
•
  LED is embedded in each switch to visually identify when circuits are on
•
  Includes set of 60 small common DC labels, detailed installation instructions, and cutout template
•
  Water resistant panel labels are not backlit
•
  For 12 or 24 volts DC circuits
•
  24 volts DC maximum operating voltage
•
  20A @ 12 volts DC switch rating
•
  15A @ 24 volts DC switch rating
•
  18 milliamps per switch LED amp draw
•
  45 amp panel cumulative amperage rating
•
  15 amp circuit breaker rating
•
  Meets UL 1500 and ISO 8846 external ignition protected - safe for installation aboard gasoline powered boats
•
  7.50 in. height x 4.50 in. width x 3.25 in. depth
