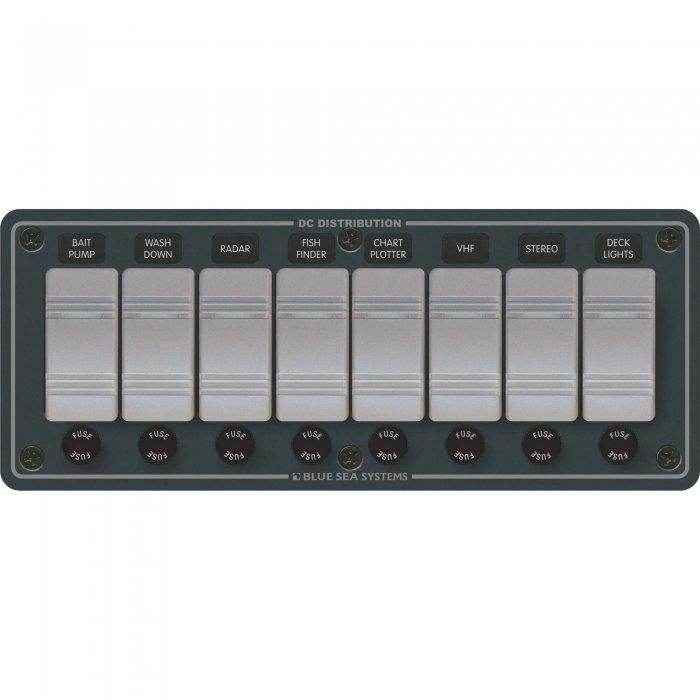

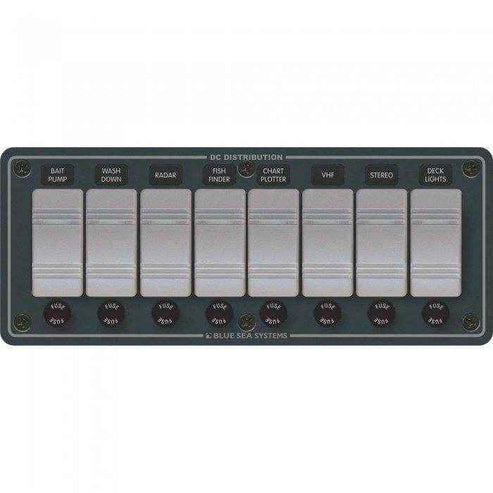

Blue Sea 8 Pos. Water Resistant Fuse Panel (Horizontal) 8261-macomb-marine-parts.myshopify.com

Blue Sea 8 Pos. Water Resistant Fuse Panel (Horizontal) 8261

  • $197.99
    Unit price per

Only 2 left!


BLUE SEA SYSTEMS 8 Position Water Resistant Fuse Panel (Horizontal) 8261

Contura Water Resistant 12V DC Panel - 8 Position


  • 8 Position Water Resistant Fuse Panel (Horizontal)

  • Slate Gray

  • Designed for flybridge and open cockpit applications

  • Water resistant

  • Water resistant fuse holders accept commonly available AGC (Fast Acting) and MDL (Slow Blow) glass fuses

  • Eight positions, eight installed ON-OFF Contura switches

  • Countersunk mounting holes throughout

  • Heavy 1/8 in. aluminum material

  • Two-part polyurethane slate gray finish

  • Water resistant Contura switches

  • ON indicating LEDs embedded in switch

  • Includes set of 60 small format common DC labels

  • Compact labels minimize panel space requirements

  • Industry standard height 3.75 in. and width 9.37 in.

  • Watertight mounting gasket

  • Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion

  • Detailed installation instructions and cutout template

  • Water resistant panel labels are not backlightable

  • Voltage 12 or 24 Volts DC

  • Switch Rating:

  • 20 Amperes @ 12 Volts DC

  • 15 Amperes @ 24 Volts DC

  • Switch LED Amperage Draw 18 Milliamperes each

  • Fuse Holder Rating 20 Amps maximum

  • Panel Cumulative Rating 45 Amps
