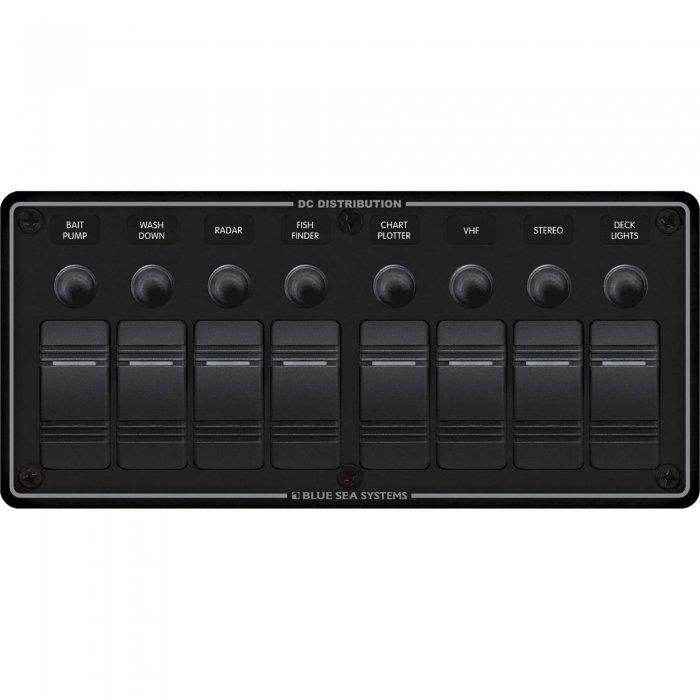

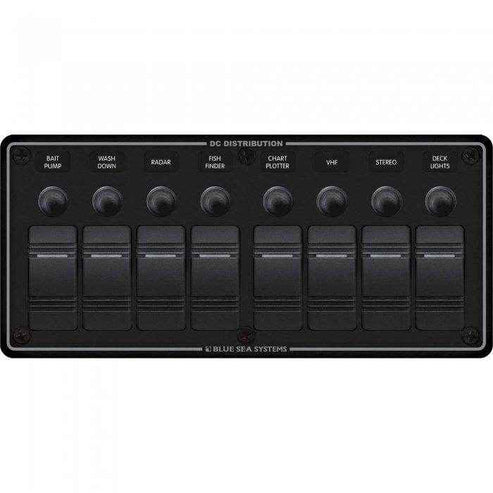

Blue Sea 8 Position Water Resistant Breaker Panel 8371
Blue Sea 8 Position Water Resistant Breaker Panel 8371
8 Position Water Resistant Circuit Breaker Panel
-
8 Position Water Resistant Circuit Breaker Panel (Horizontal) -
Designed for flybridge and open cockpit applications -
Water resistant -
Completely wired and ready to install -
Push button circuit breakers with waterproof boot -
Eight installed ON-OFF Contura switches -
Countersunk mounting holes throughout -
Heavy 1/8 in. aluminum material -
Two-part polyurethane black finish -
Water resistant Contura switches -
ON indicating LEDs embedded in switch -
Includes set of 60 small common DC labels -
Height 4.25 and width 9.37 -
Watertight mounting gasket -
Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion -
Detailed installation instructions and cutout template -
Water resistant panel labels are not backlightable -
Voltage 12 or 24 Volts DC -
Switch Rating: -
20 Amperes @ 12 Volts DC -
15 Amperes @ 24 Volts DC -
Switch LED Amperage Draw 18 Milliamperes each -
Fuse Holder Rating 20 Amps maximum -
Panel Cumulative Rating 45 Amps -
Circuit Breaker Rating 15 Amperes -
Rated IP66 - Use on Shipdecks -
Ignition protected - safe for installation aboard gasoline powered boats
