Blue Sea Black M-Series Battery Switch Dual Circuit 6010200

  • $62.53
    Unit price per

Only 9 left!

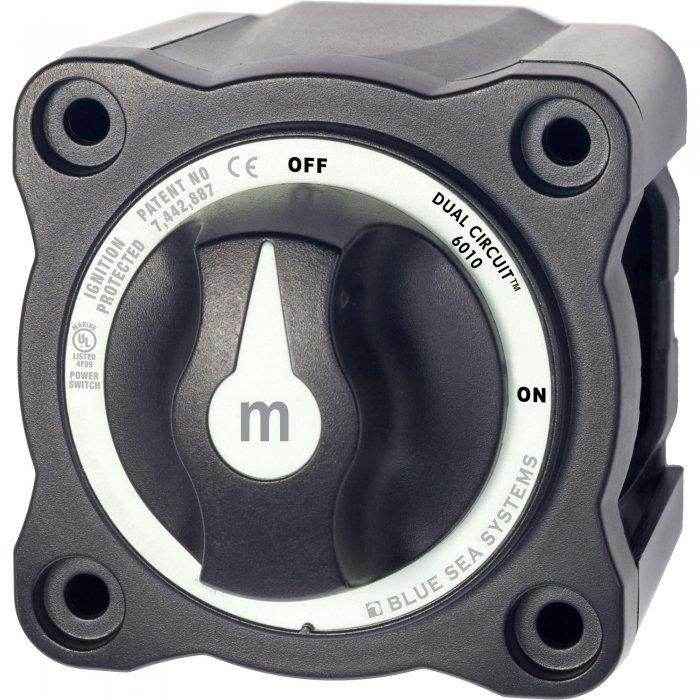

Blue Sea Systems Black M-Series Battery Switch Dual Circuit 6010200


  • Black M-Series Battery Switch, Dual Circuit™

  • Simultaneously switches two isolated battery banks

  • Ignition protected - safe for installation aboard gasoline powered boats

  • Case design allows surface, front panel, or rear panel mounting

  • Isolating cover with snap-on sections protects rear contacts

  • Cranking rating: 10 sec. 1,000 A

  • Cranking rating: 1 min. 650 A

  • Intermittent rating: 5 min. 450 A

  • Continuous rating 300 A

  • Maximum voltage rating 32 Volts DC

  • Terminal stud size 3/8 in.-16 (M10)

  • Terminal stud torque 120 in-lbs. (13.56 N-m) max.

  • Mounting holes accept #10 screw

  • Cable size to meet ratings 4/0 AWG (95mm sq.)

  • Cable clearance for 4/0 AWG cables 1.12 in. (28.4mm)

  • Weight lbs. (kg) 0.80 (0.36)
