Blue Sea  Circuit Breaker  Bus 285 Sfcmt 120A 7188-macomb-marine-parts.myshopify.com

Blue Sea Circuit Breaker Bus 285 Sfcmt 120A 7188

  • $52.53
    Unit price per

Only 11 left!

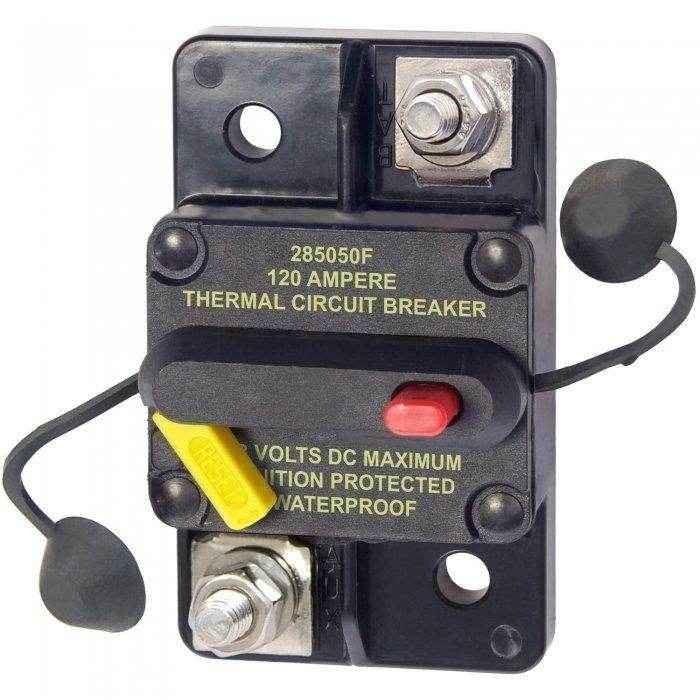

Blue Sea Systems Circuit Breaker Bus 285 Sfcmt 120A 7188

Surface mount thermal circuit breaker combines switching & circuit protection into one device.


  • 285 Series circuit breaker

  • 120 amps DC rating

  • Bright yellow reset lever for visual identification of open circuit

  • Ideal for main circuit protection of medium size battery banks

  • Combines switching and circuit protection into a single device

  • Trip-free design cannot be held ON during fault current condition

  • Not to be used where high inrush currents are expected

  • Type III class – switchable/manual reset

  • 48 volts DC maximum voltage

  • 3000 amps interrupt capacity @ 48 volts DC

  • M6 terminal studs accept 1/4 in. ring terminals for heavy duty gauge wire

  • Waterproof for use in areas that may experience water spray

  • Recessed mounting holes for clean appearance

  • Drop in replacement for 185 series circuit breakers

  • 1.895 in. width x 3.2 in. height x 1.24 in. depth

  • SAE J1171 ignition protected – safe for installation aboard gasoline powered boats

  • CE marked

  • IP67 – protected against immersion up to 1 meter for 30 minutes

  • Replaces P/N 7113
