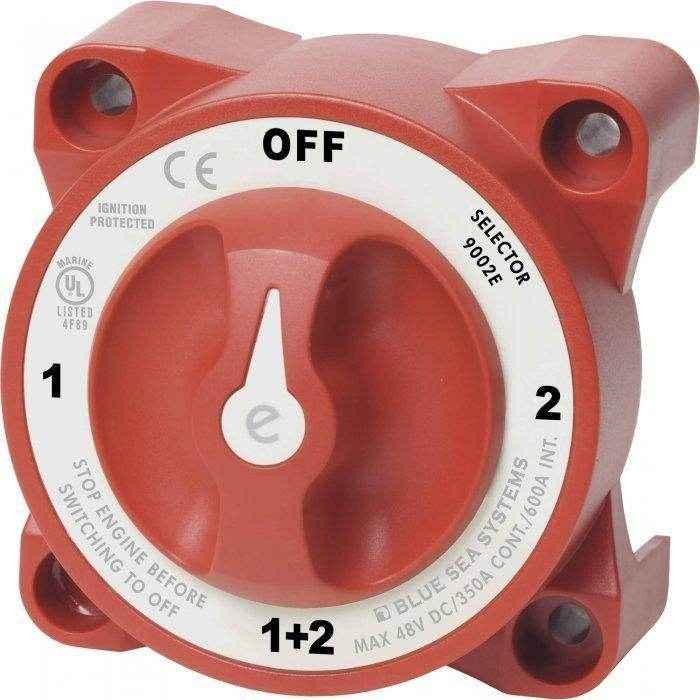

Blue Sea Red E-Series Battery Switch 4 Pos. 9002E
BLUE SEA SYSTEMS Red E-Series Battery Switch Selector 4 Position 9002E
Switches isolated battery banks to all loads or combines battery banks to all loads for inboard gasoline or diesel engine applications.
-
Blue Sea 4 position battery switch with alternator field disconnect -
e Series -
Switch allows the selection, disconnection, or combination of 2 battery banks -
Make-before-break contact design allows switching between battery banks without power interruption -
AFD feature prevents engine electrical damage by interrupting the field current of non-unitized alternators if switch is turned off when engine is running -
Case design allows surface or rear panel mounting -
Molded in durable reinforced polycarbonate -
Tin-plated copper studs accept 3/8''-16 (M10) ring terminals -
7/8 in. long stud accepts multiple cable terminals -
Accepts up to 4/0 AWG battery cables -
Constructed of non-corrosive marine grade metals -
350 amp DC continuous rating -
600 amp DC intermittent rating -
1,200 amp DC 30 second cranking rating -
32 volts DC maximum operating voltage -
Accepts 14 in. (M6) mounting screws – sold separately -
3.85 in. diameter x 3.097 in. depth -
Designed to fit most standard Perko and Guest battery switch hole patterns -
IP 66 rated against dust ingression and water intrusion -
ISO 8846 marine -
Meets UL 1500 and SAE J1171 marine ignition protection requirements -
Meets UL 1107 standards for electric power switches -
CE certified
