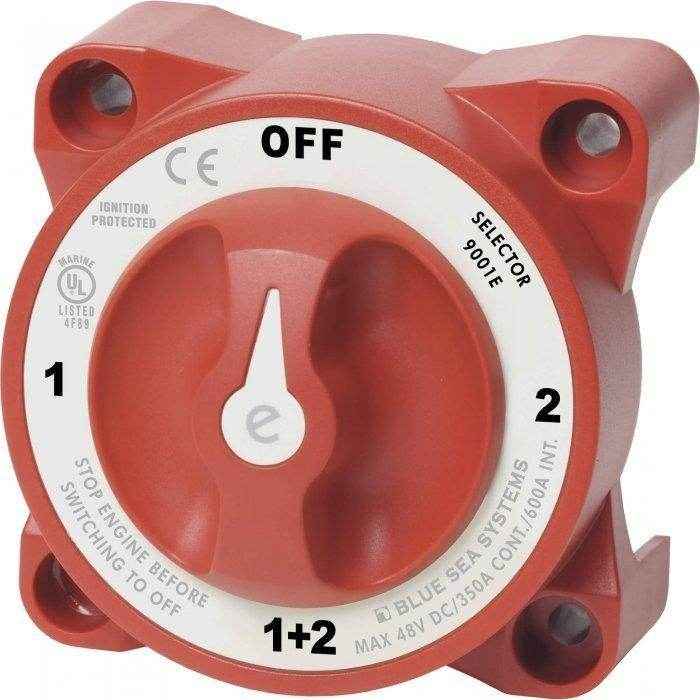

Blue Sea Red E-Series Battery Switch 4 Position 9001E

BLUE SEA SYSTEMS Red E-Series Battery Switch Selector 4 Position 9001E

Switches isolated battery banks to all loads or combines battery banks to all loads for inboard gasoline or diesel engine applications.

•
  Blue Sea 4 position battery switch
•
  e Series
•
  Switch allows the selection, disconnection, or combination of 2 battery banks
•
  Make-before-break contact design allows switching between battery banks without power interruption
•
  Case design allows surface or rear panel mounting
•
  Molded in durable reinforced polycarbonate
•
  Tin-plated copper studs accept 3/8''-16 (M10) ring terminals
•
  7/8 in. long stud accepts multiple cable terminals
•
  Accepts up to 4/0 AWG battery cables
•
  Constructed of non-corrosive marine grade metals
•
  350 amp DC continuous rating
•
  600 amp DC intermittent rating
•
  1,200 amp DC 30 second cranking rating
•
  32 volts DC maximum operating voltage
•
  Accepts 14 in. (M6) mounting screws – sold separately
•
  3.85 in. diameter x 3.097 in. depth
•
  Designed to fit most standard Perko and Guest battery switch hole patterns
•
  IP 66 rated against dust ingression and water intrusion
•
  ISO 8846 marine
•
  Meets UL 1500 and SAE J1171 marine ignition protection requirements
•
  Meets UL 1107 standards for electric power switches
•
  CE certified
