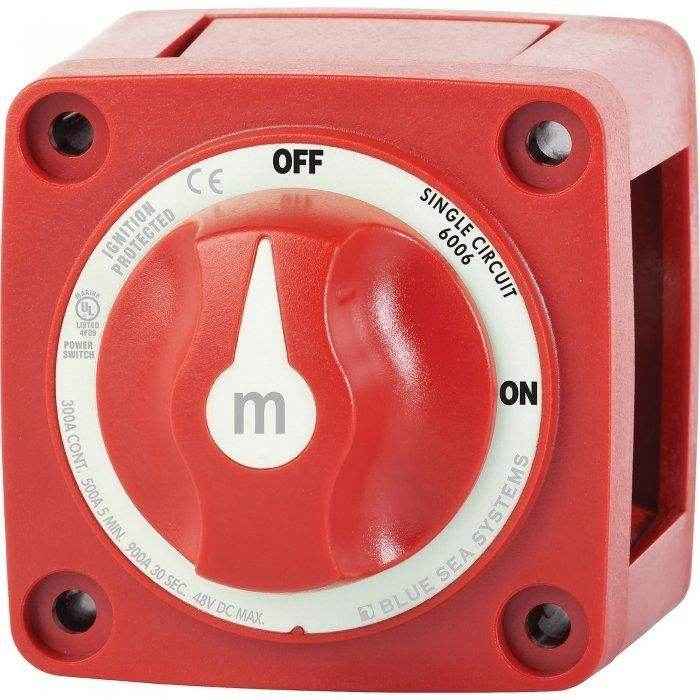

Blue Sea Systems Red M Series Battery Switch 6006
Mini battery switch switches a single battery to a single load group for outboard, small gasoline engine, or small diesel engine applications.
- Blue Sea red On-Off battery switch
- M Series
- Switches a single battery to a single load
- Case design allows surface front panel, flush mount, or rear panel mounting
- Cover with snap-on sections protect rear terminals from accidental grounding
- Breakout tabs allow cable routing from many different angles
- Front panel, rear panel, and surface mounting options
- Molded in durable reinforced polycarbonate
- Tin-plated copper studs accept 3/8''-16 (M10) ring terminals
- 7/8 in. long stud accepts multiple cable terminals
- Accepts up to 4/0 battery cables
- Constructed of non-corrosive marine grade metals
- 300 amp DC continuous rating
- 500 amp DC intermittent rating
- 900 amp DC 30 second cranking rating
- 48 volts DC maximum operating voltage
- Accepts #10 mounting screws – sold separately
- 2.95 in. diameter x 3.328 in. depth
- IP 66 rated against dust ingression and water intrusion
- ISO 8846 marine
- Meets UL 1500 and SAE J1171 marine ignition protection requirements
- Meets UL 1107 standards for electric power switches
- CE certified
- Replaces P/N 9006
