Damper Plate Two Stage Spring | Crusader 98298

Crusader Two Stage Spring Damper Plate 98298 - MacombMarineParts.com

Damper Plate Two Stage Spring | Crusader 98298

  • $235.31
    Unit price per

Only 25 left!

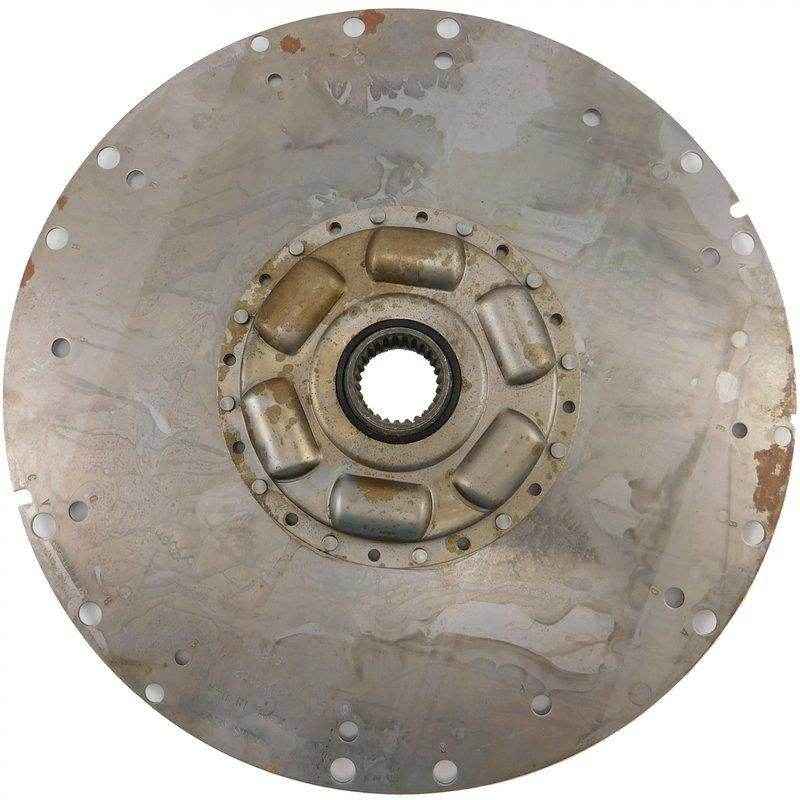

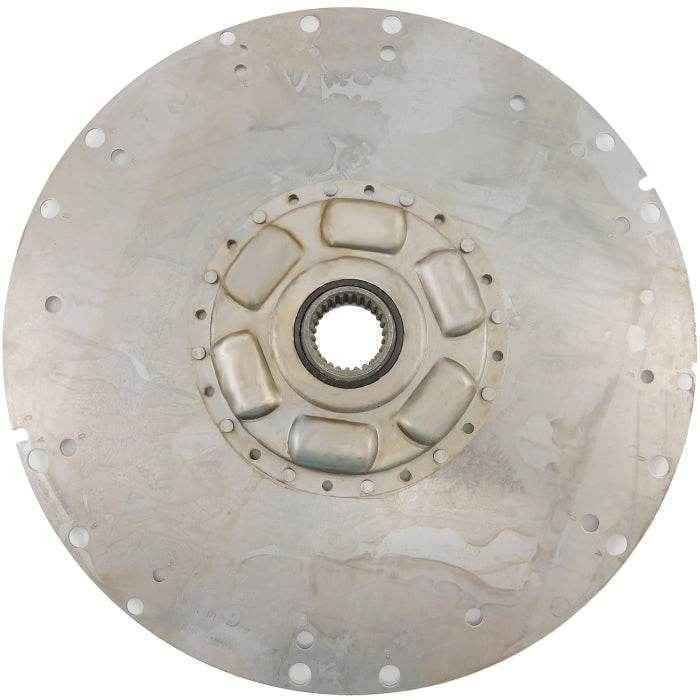

Damper Plate Two Stage Spring | Crusader 98298

Crusader Two Stage Spring Damper Plate | 98298

  • OEM Crusader dual stage damper plate couples 262, 350 and 454 cu. in. marine engines to ZF Hurth and some Velvet Drive 5000 series transmissions
  • Original equipment Crusader flywheel mounted damper plate used to drive the transmission
  • Fits Crusader 5.7L, 7.4L and 8.2L GM engines with 14 inch flywheel
  • First design damper plate used with ZF/Hurth and Velvet Drive 5000 transmissions
  • Damper measures 13 1/4 inches in diameter and has a 26T 20/40 splined drive hub
  • Splined drive hub extends 1 1/16 inches from the flywheel face
  • Plate incorporates spring type dampening with the added feature of a rubber cushioned drive hub for added torsional dampening
  • Upgradable to a Centa version part number R140019 on later design Velvet Drive 5000 with new design input shaft beginning approximately 1998
  • Upgradable to a Centa version part number R140019 on all ZF HBW630, ZF63 and ZF68 transmission models
  • Fits Crusader 4.3L, 5.0L, and 5.7L marine engines
  • Mates to ZF Hurth or early production Velvet Drive 5000 series transmissions with larger diameter input shaft
  • Manufacturer number on damper is 811145 050620
  • 4 light green springs and 2 orange springs
  • Original Crusader
