Gen II Shaft Seal 1 1/4 In. Shaft | LasDrop G114-258
Gen II Shaft Seal 1 1/4 In. Shaft | LasDrop G114-258

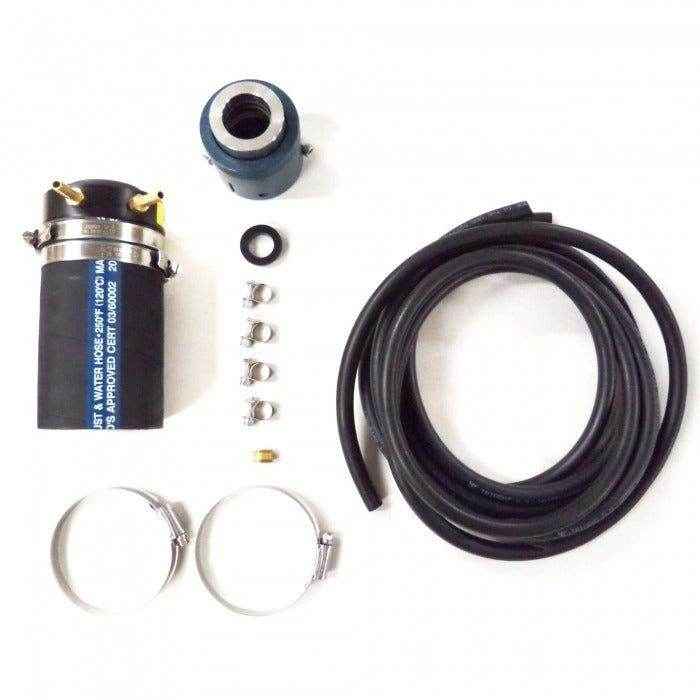

- Gen II Shaft Seal 1 1/4 in. Shaft
- 2 5/8 in. Stern Tube
- The Friction Ring assembly is mounted with a rigid connection hose and uses a carbon graphite sealing surface all encased by a durable copolymer housing
- Cutlass bearing ensures proper alignment to the shaft even if the shaft itself is not aligned
- The clamp pressure assembly secures the assembly around the shaft preventing galling or damage to the shaft that can occur with set screws
- The 316 stainless steel ring floats on the ball bearing drive system maintaining complete contact with the carbon graphite seal surface
- Seal ring features two rubber/fiber U-cup seals that rotate with the shaft and never wears out
- Hose barbs are constructed of solid brass and are coated to prevent corrosion
- Hose clamps are manufactured of 316 stainless steel with indentations rather than perforations providing twice the tensile strength and eliminating friction as in regular clamps
- Two hose clamps provide for each connection point
- Virtually no metal to metal contact eliminates the risk of electrolysis
