101 Series XDS Short Trim Tab Actuator 2.25 inch Stroke - 12 Volt | Lenco Marine 15057-001

  • $277.70
    Unit price per
  • Save $112.36

Only 9 left!

101 Series XDS Short Trim Tab Actuator 2.25 inch Stroke - 12 Volt | Lenco Marine 15057-001

Lenco Marine 101 Series XDS Short Trim Tab Actuator 2.25 inch Stroke - 12 Volt | 15057-001

  • Lenco 101 XDS extreme duty actuator
  • The shortest trim tab actuator Lenco manufacturers
  • 12 volt DC operation

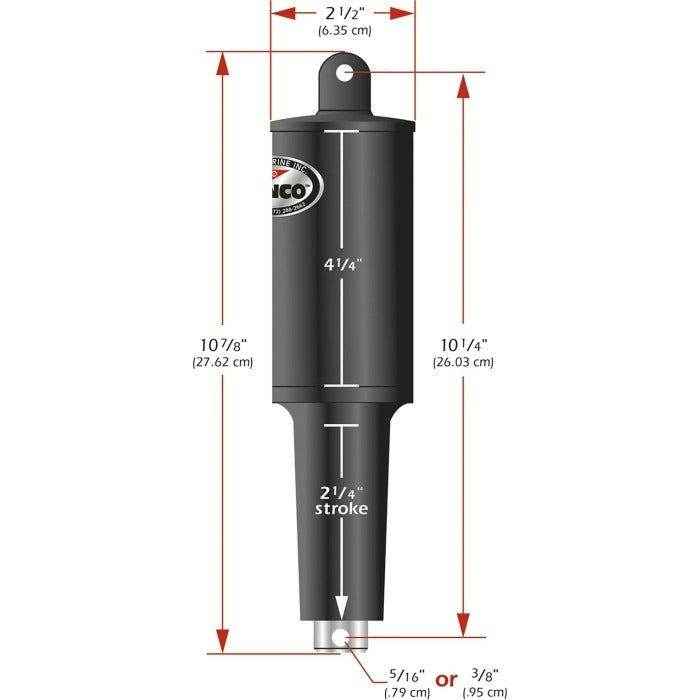

  • 2 1/4 in. stroke
  • 10 7/8 in. overall length when fully retracted
  • 10 in. pin to pin length
  • 6 ft. cable
  • 5/16 in top and bottom cap hole sizes
  • Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
  • High-impact UV resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
  • Corrosion proof Vandar cap and mounts
  • Stainless steel ram will not flex
  • Self-locking ballscrew locks into position and is twice as powerful compared to typical hydraulics
  • High-torque motor easily pushes 500 lbs
  • Double o-ring design for a reliable seal
  • CE certified
  • 3 year warranty
