Zf Marine 9000 Series MicroCommand Actuator | Mathers Controls 91100
ZF MicroCommand actuator delivers precise, instant electronic control of mechanical engines & gears on boats and commercial vessels.

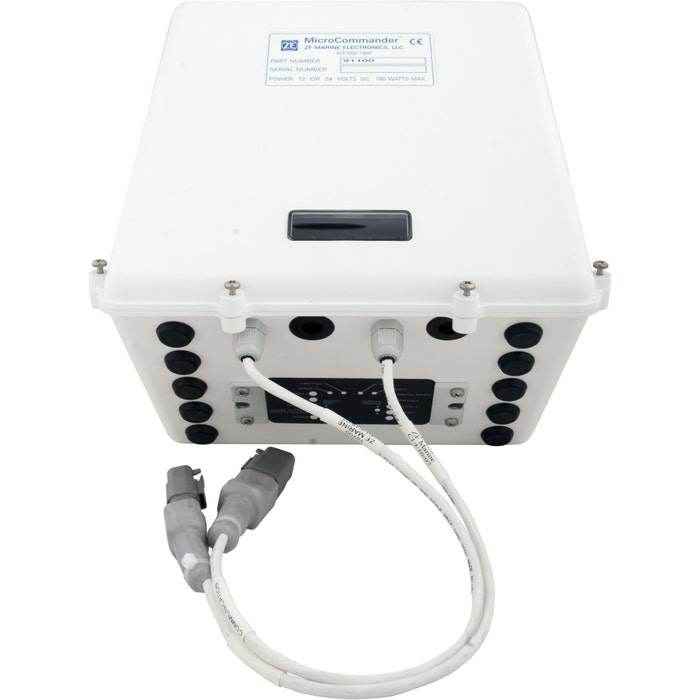

- MicroCommander actuator
- MicroCommand actuator electronically controls the shift and throttle functions of one marine engine
- Actuator is capable of being controlled from 5 different user-defined control station
- Uses standard 33C style push-pull control cables for the connection of the actuator to the transmission shift lever and of the actuator to the engine throttle connection
- All additonal system components including shift cables, wires, relays ,circuit breakers, and control heads are sold separately
- LED display utilizes self diagnostic software and engine synchronization
- The LED displays codes for easy setup or system status and is visible without opening the enclosure
- Capable of custom configuration by changing the system parameters through the key pad
- Communication between processors in multiple engine applications is achieved using a Controller Area Network (CAN) serial bus
- Serial wire harness 13316xx must be purchased for multiple engine applications
- One actuator used per engine
- Hardwire non-pluggable version
- Meets ABYC standards for performance and functional testing
- CE certified
- UL 1500 approved with built in ignition protection
- Replaces ZF Mathers 00585, 00585CE, 00585CE-2P, 585CEUE
